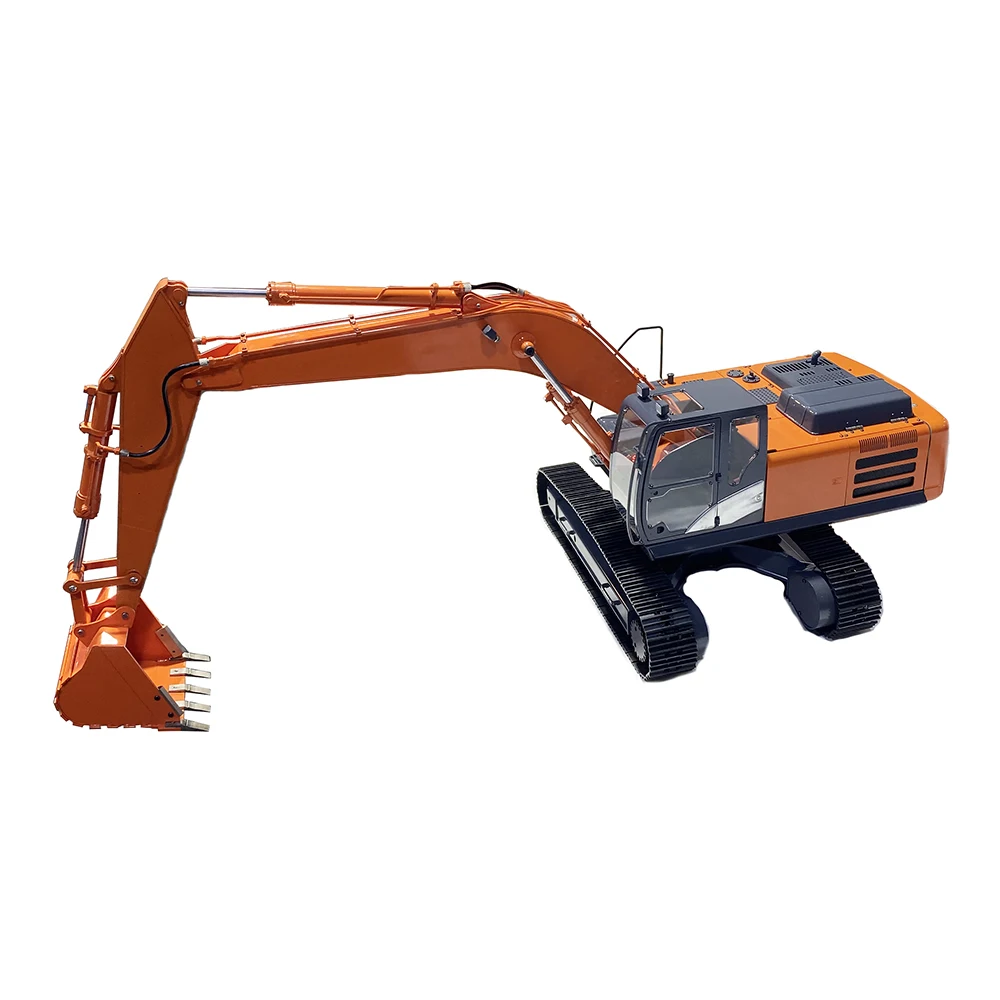

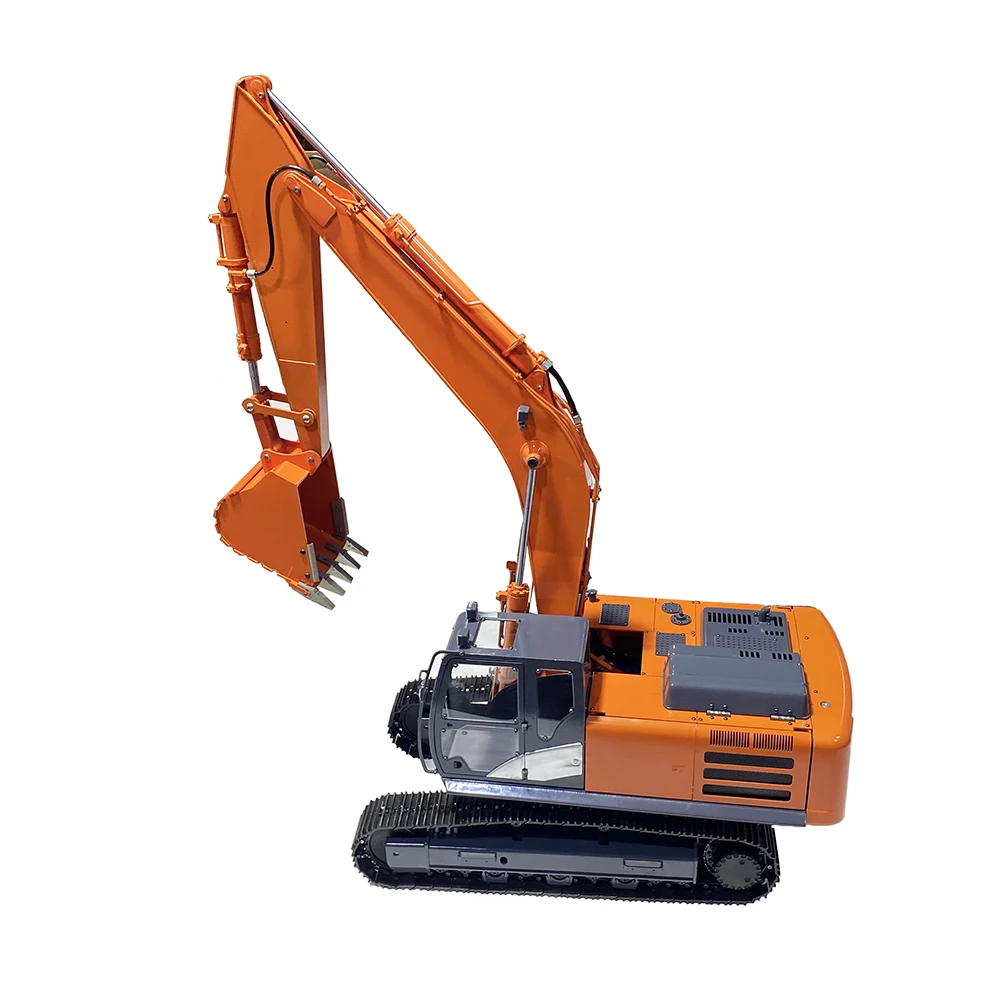

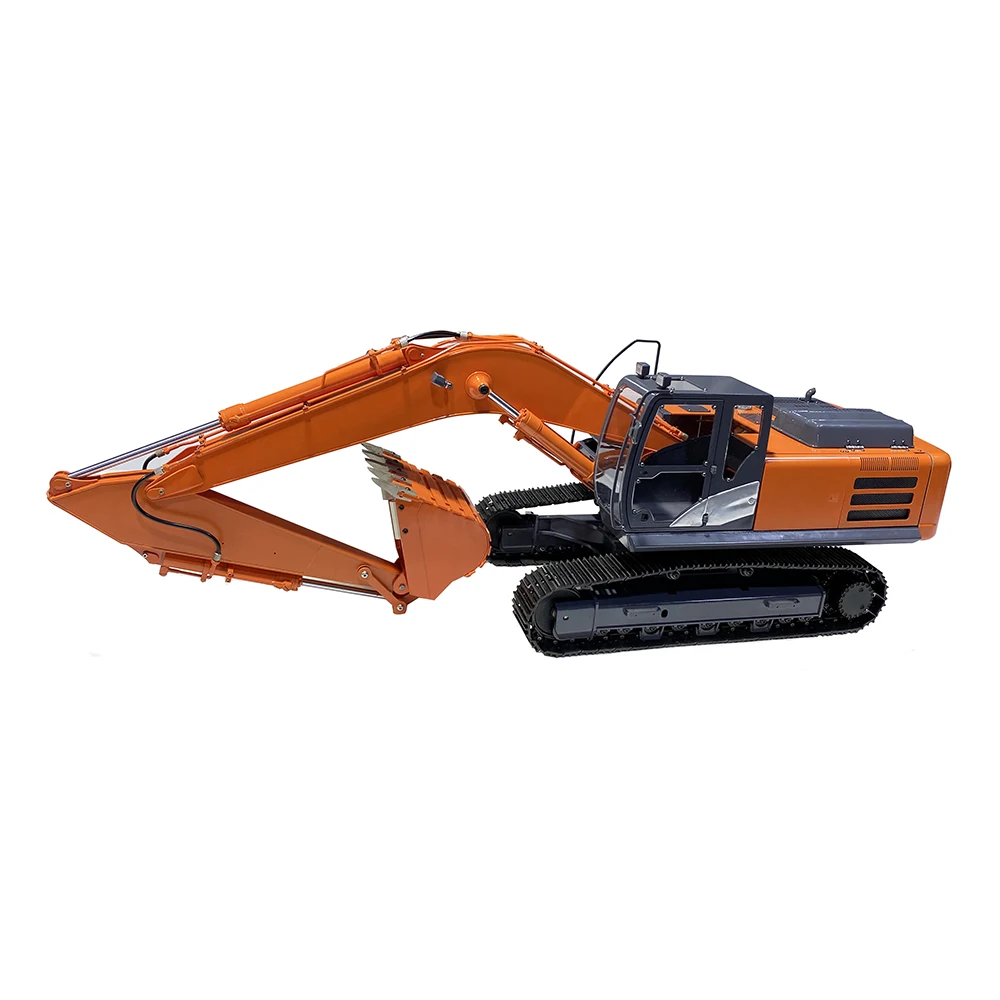

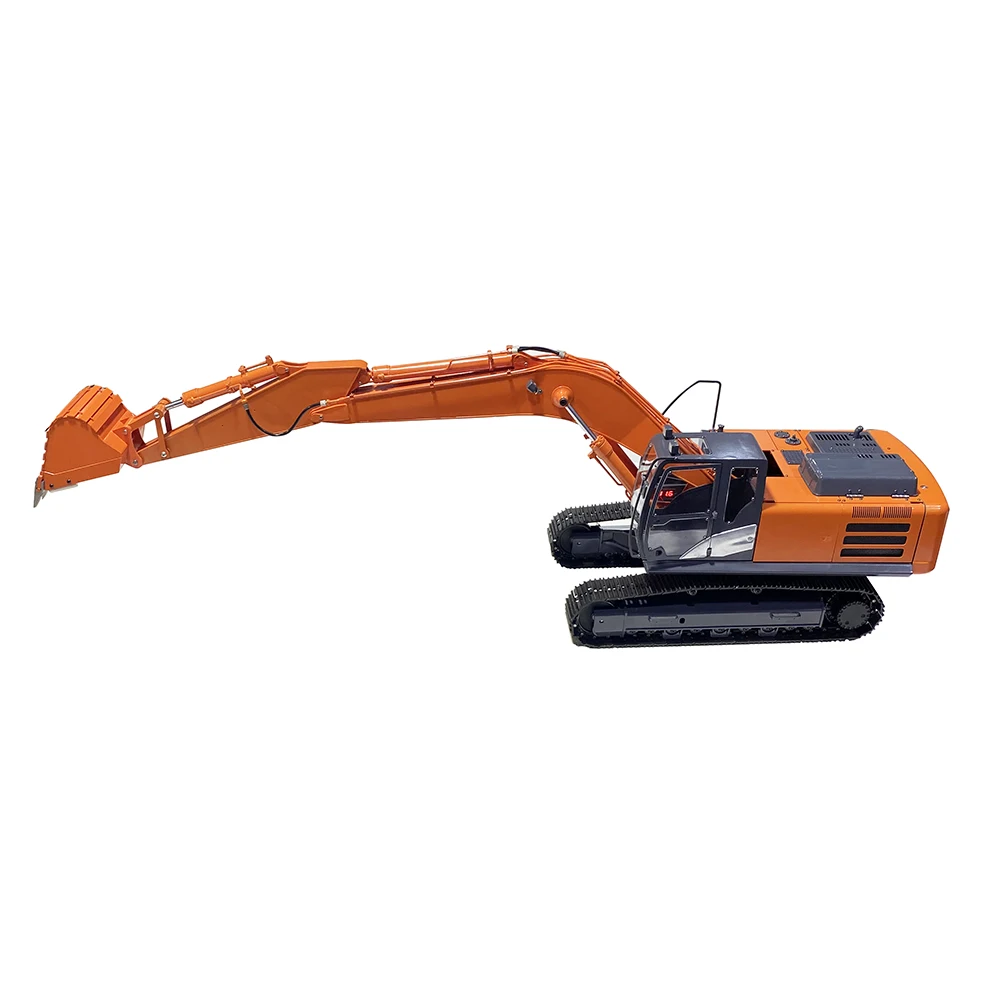

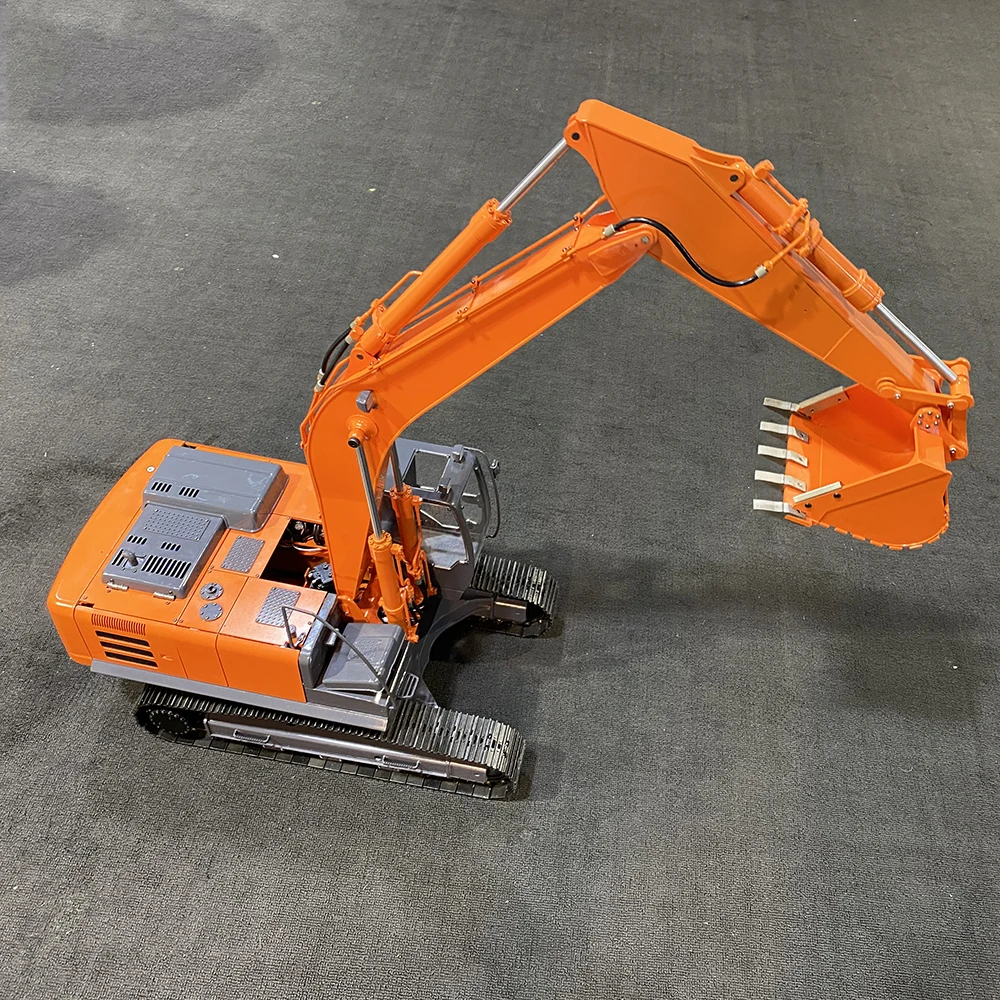

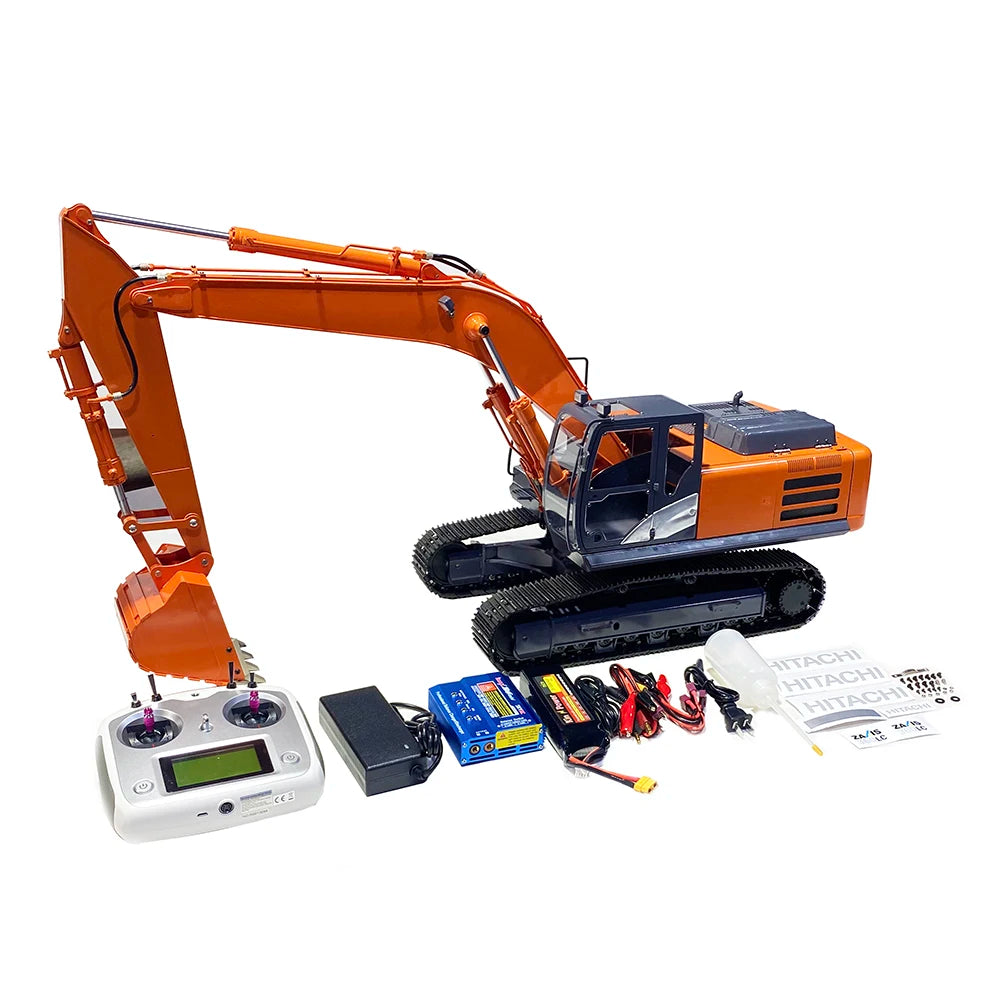

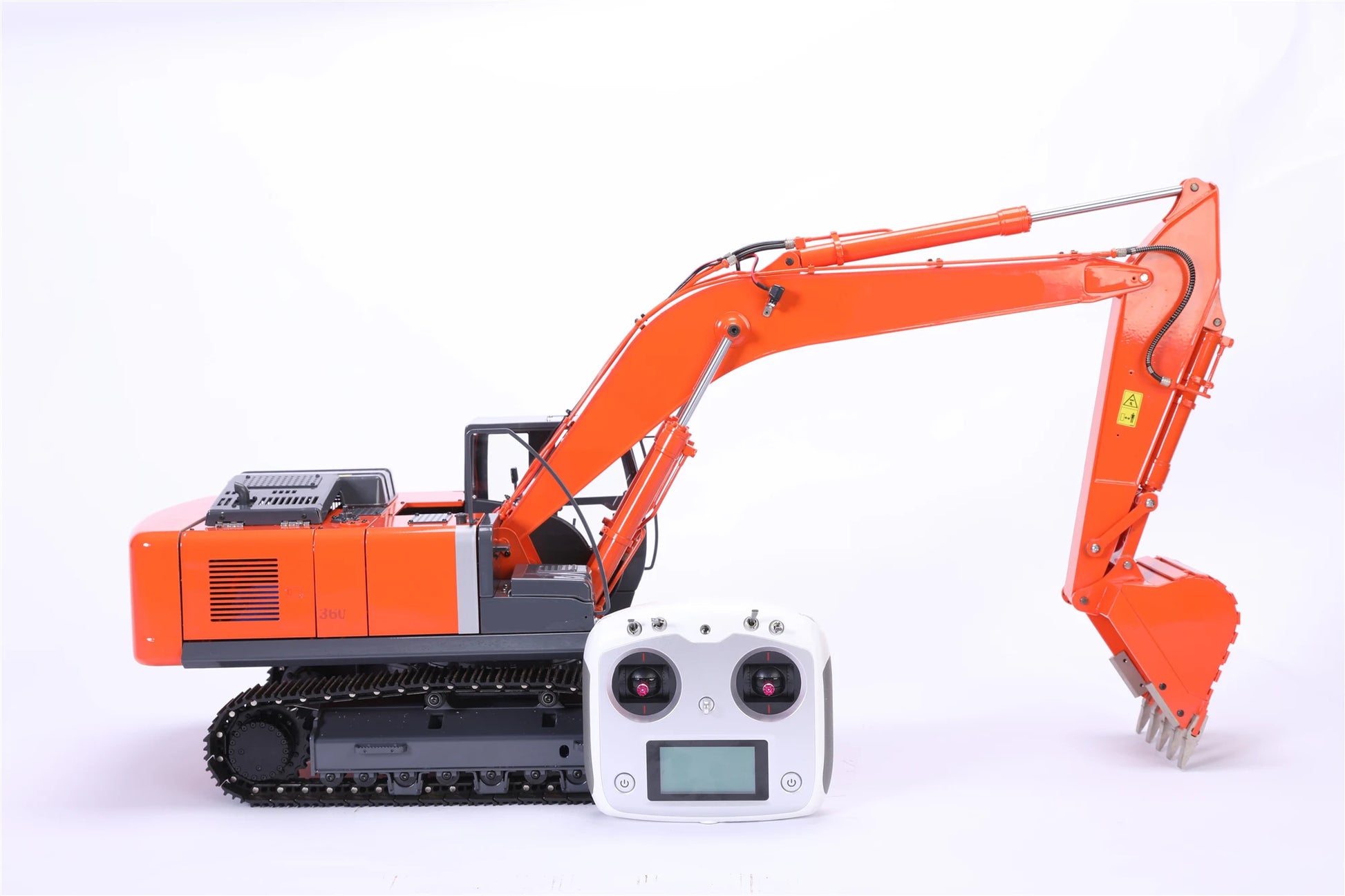

Hitachi Excavator 1/12 360-5 Remote Control Hydraulic Excavator Metal Model Hydraulic Remote Control Excavator Engineering Machinery Model Gift Toy

Shell version: excluding spray

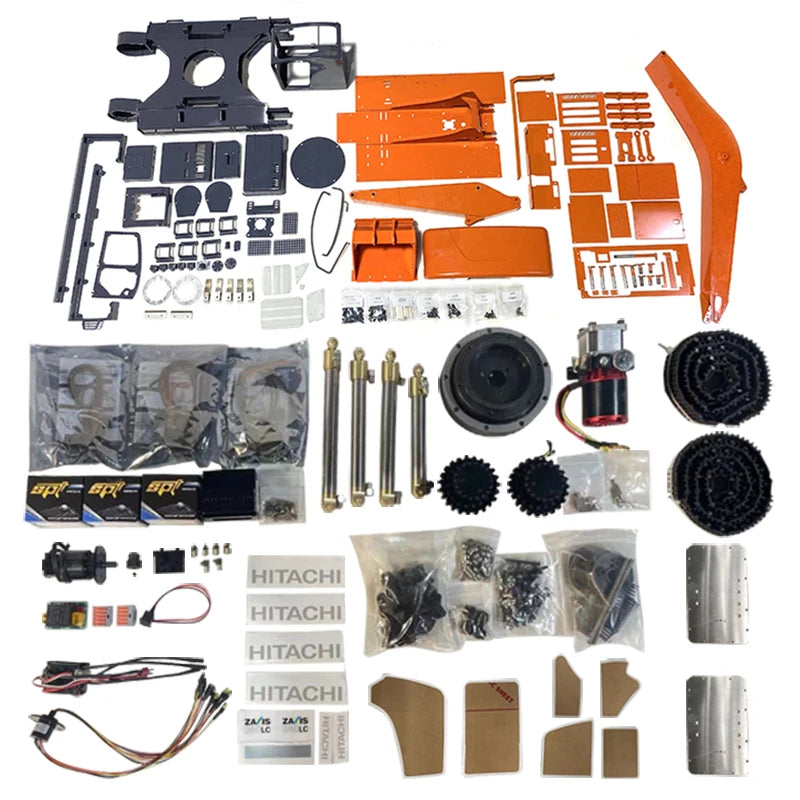

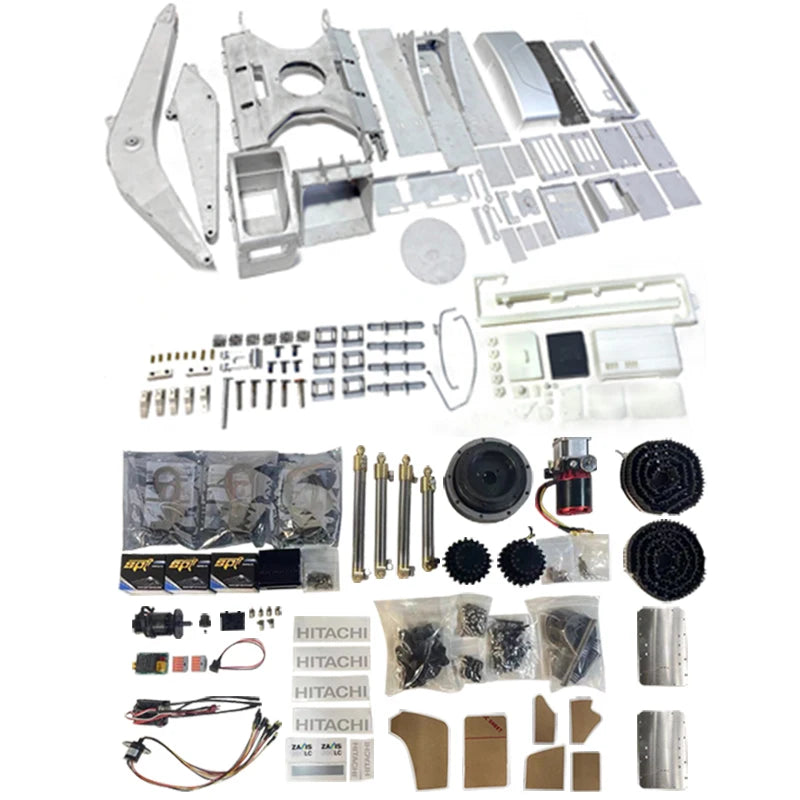

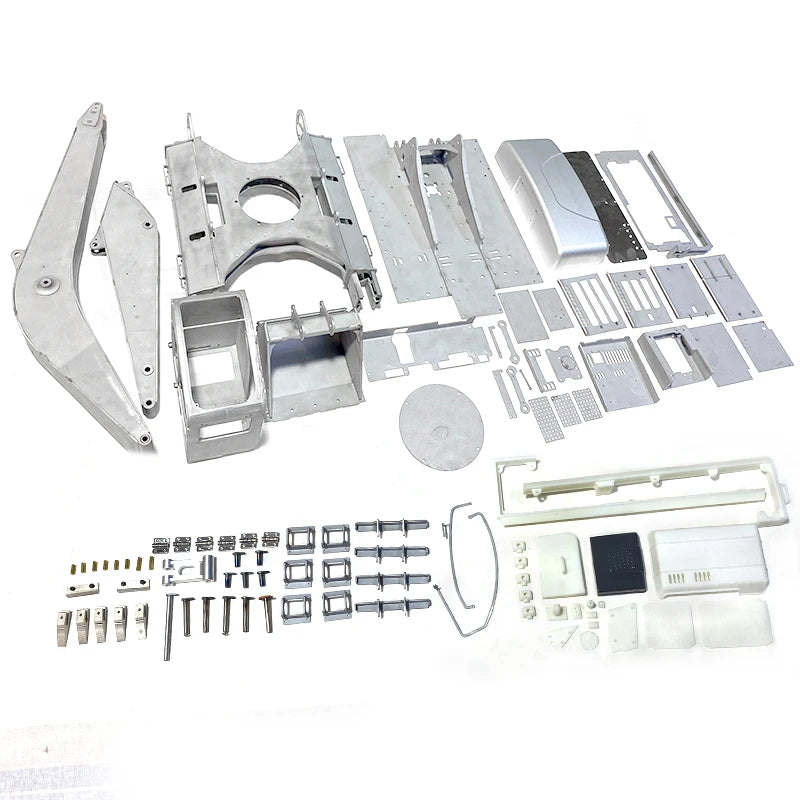

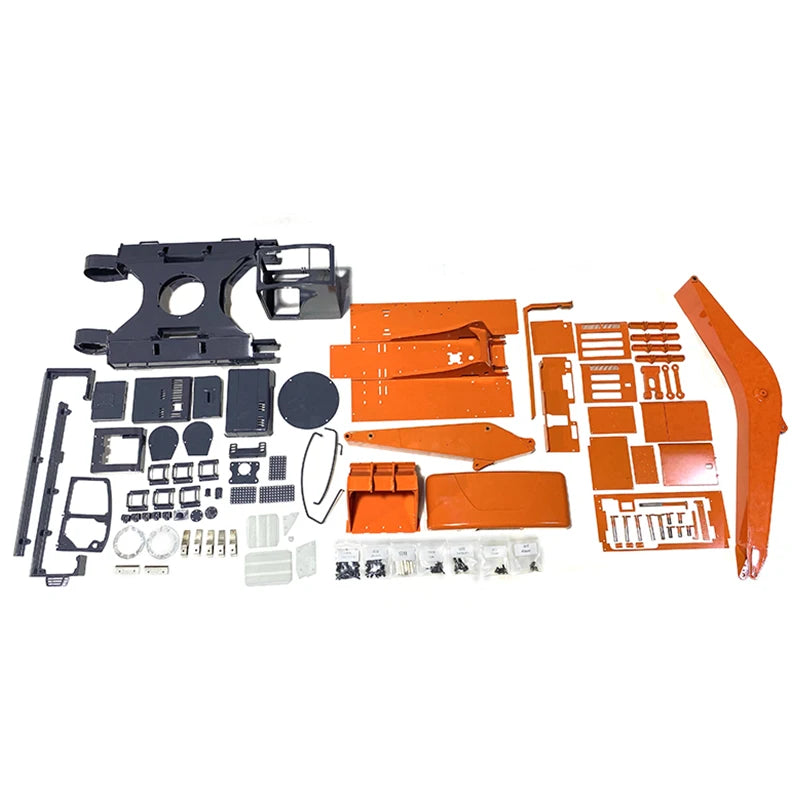

Paint. Housing package includes: chassis, chassis x jia, great&small bei, bucket, connecting rod, swing frame, shaft pin.

Net weight:52Jin

Vehicle Plus package35Kg

Material-Body: steel plate,Aluminum AlloyEtc.

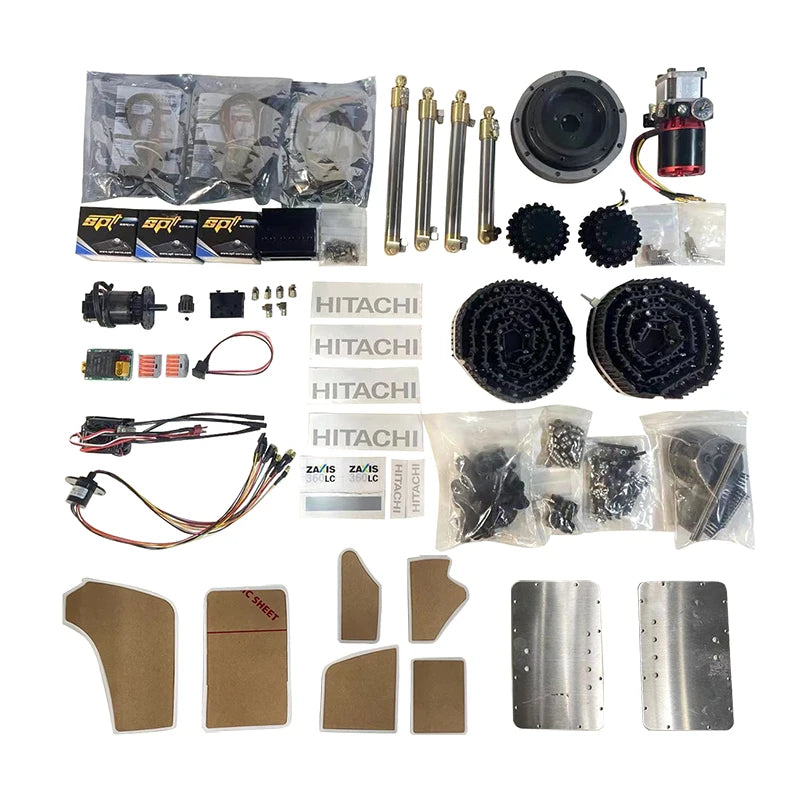

Vehicle version with battery: chassis, whole car with electronic equipment hydraulic system remote control, without sound Group and light group (the product with light in the photo is upgraded product, for reference only).

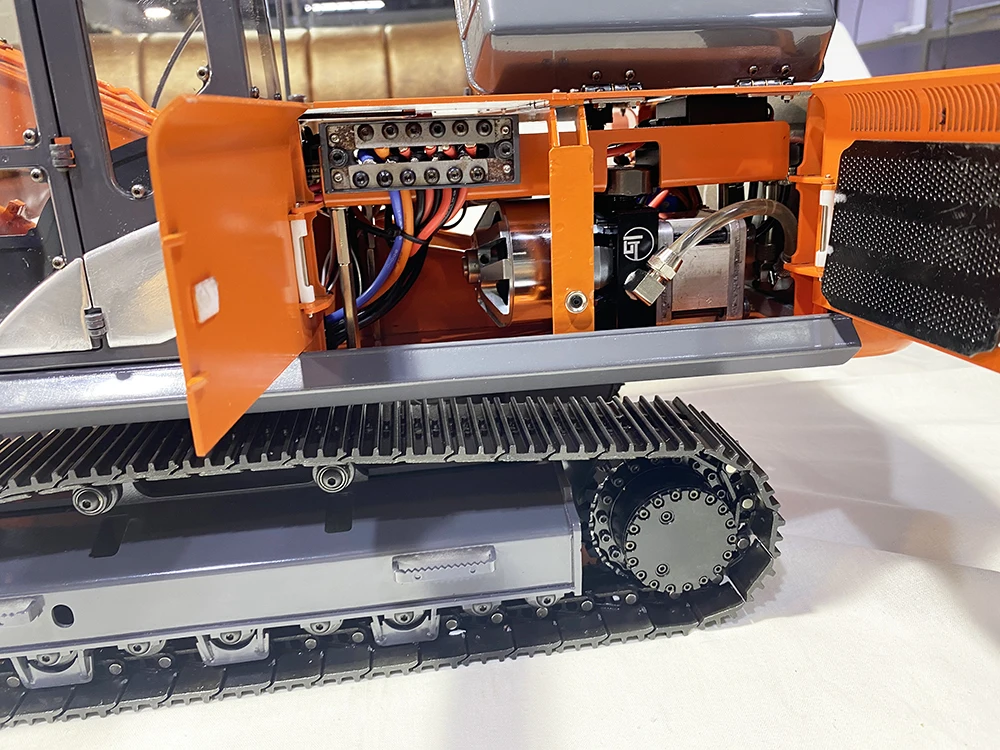

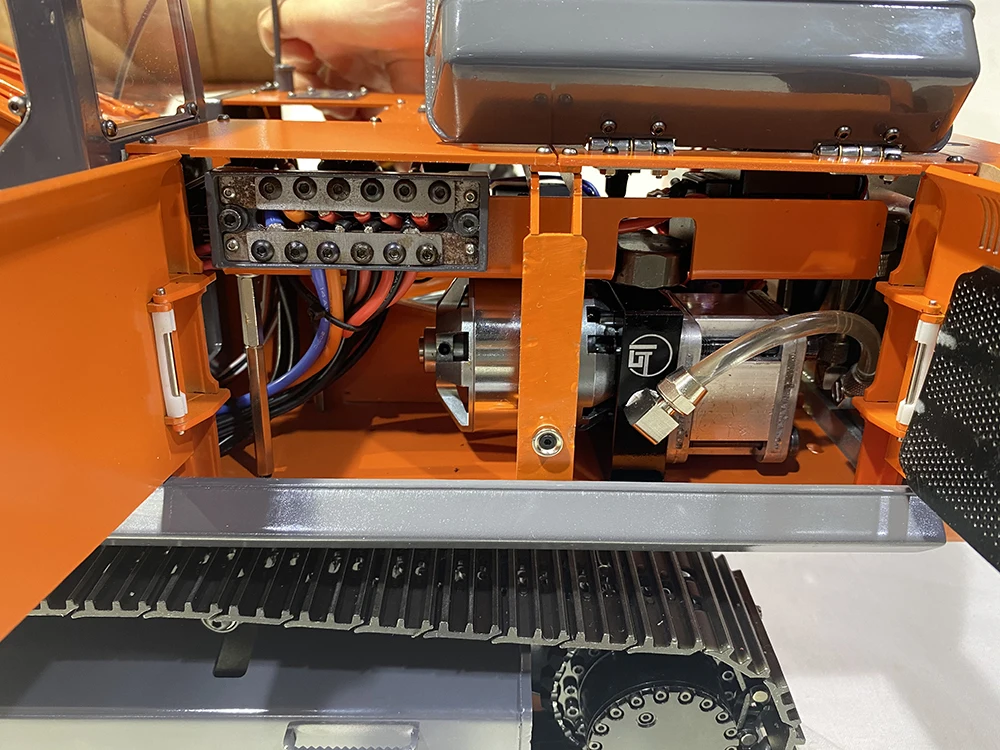

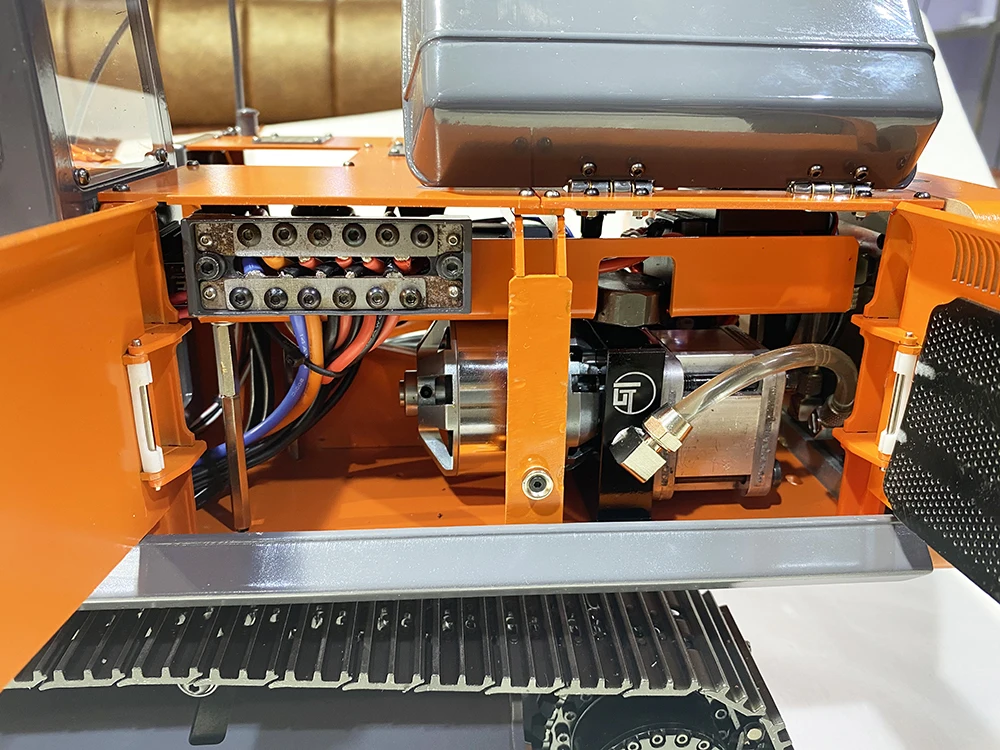

Hydraulic pump: Italian Pump (factory3.5mpa)

hydraulic valve:Intravenous Valve

Walking: Latest version walking

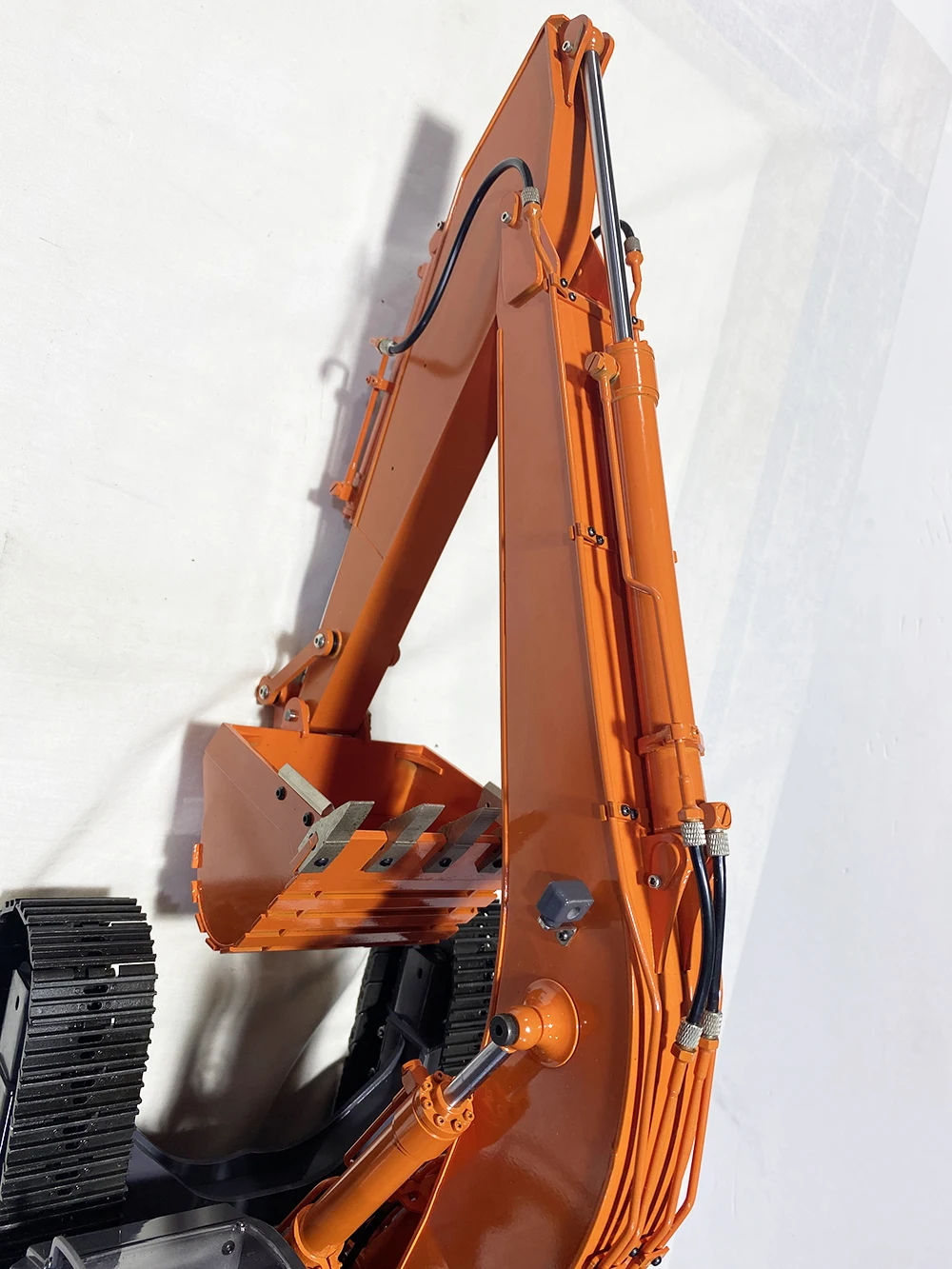

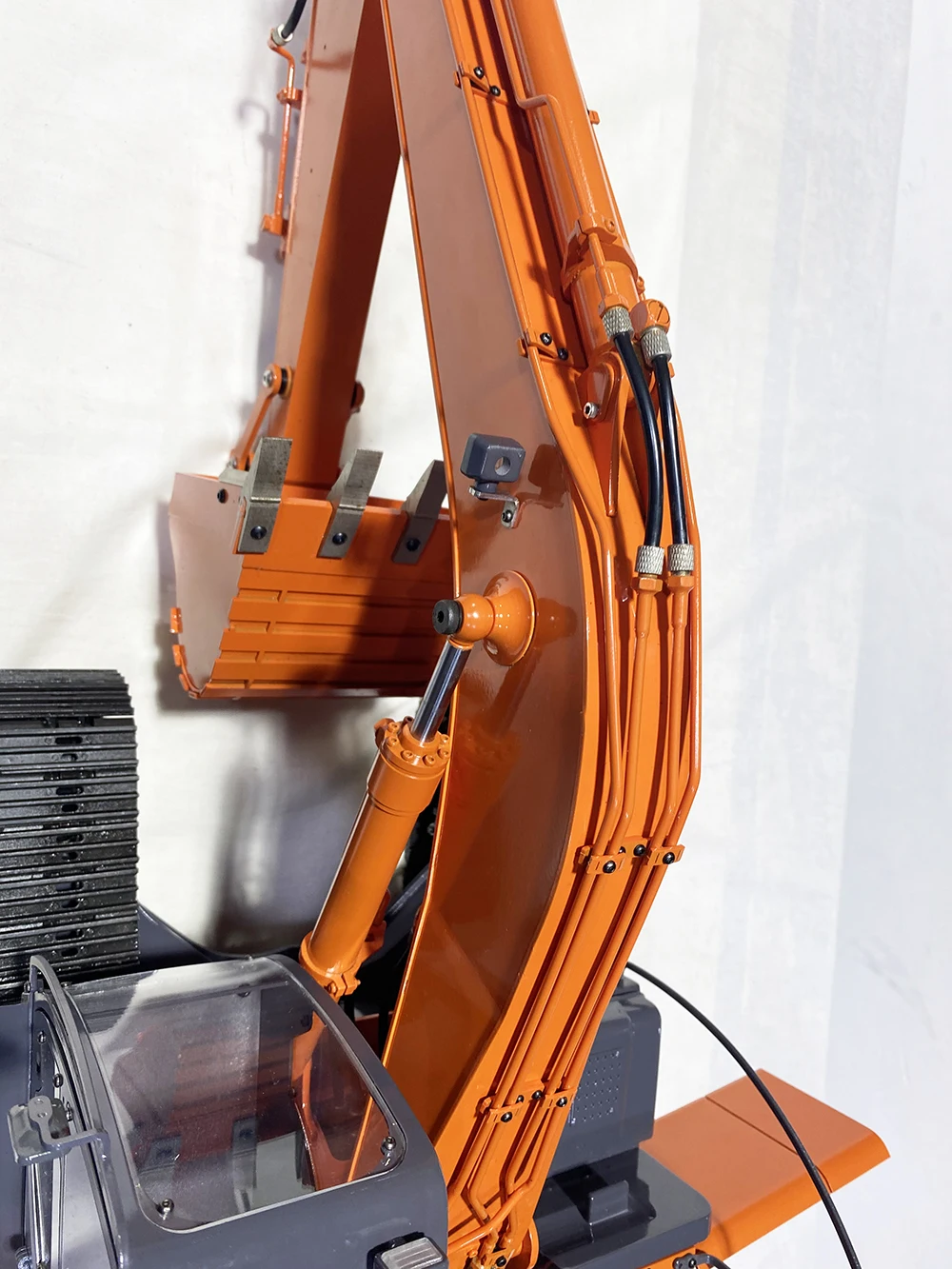

The hydraulic oil cylinder:Stainless steel and brass

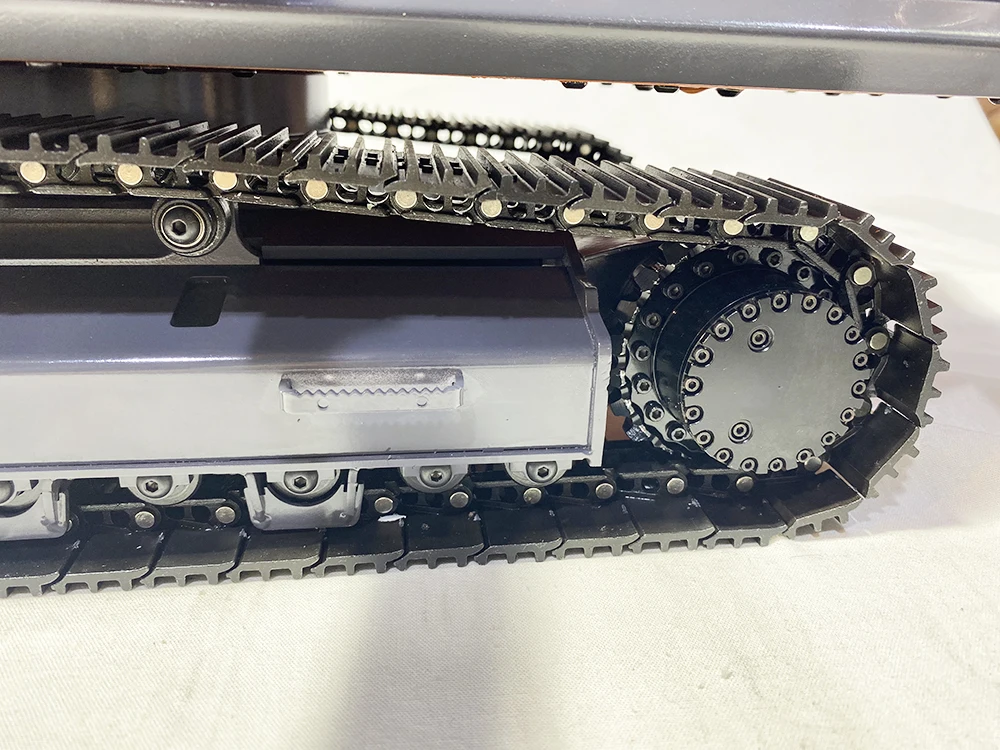

Track: 5CM all-steel track

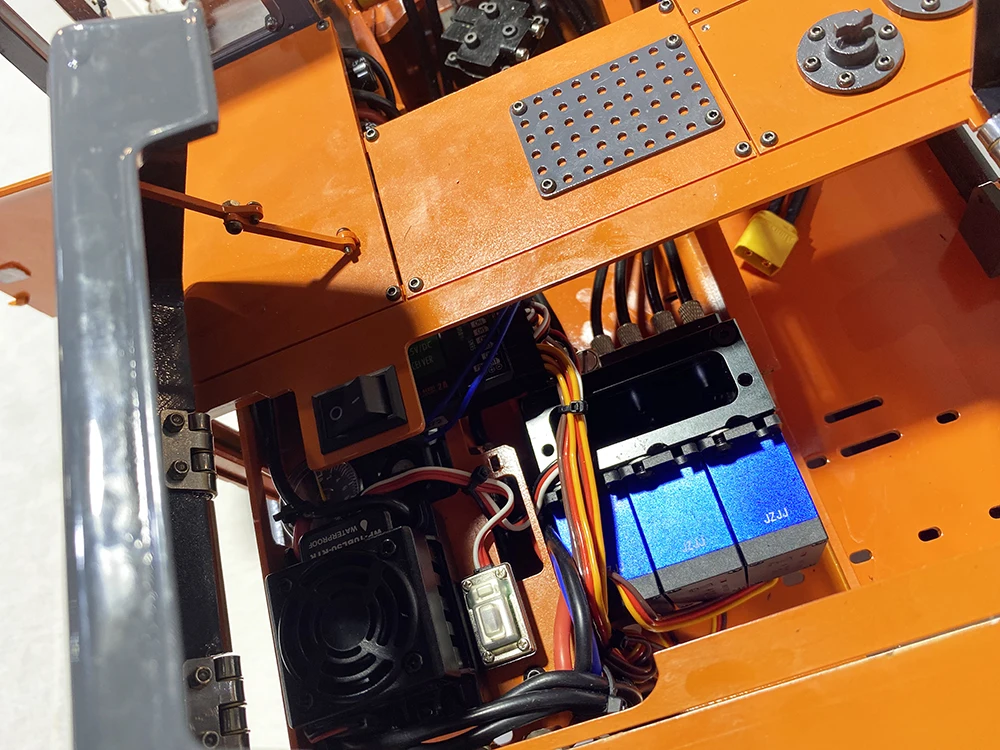

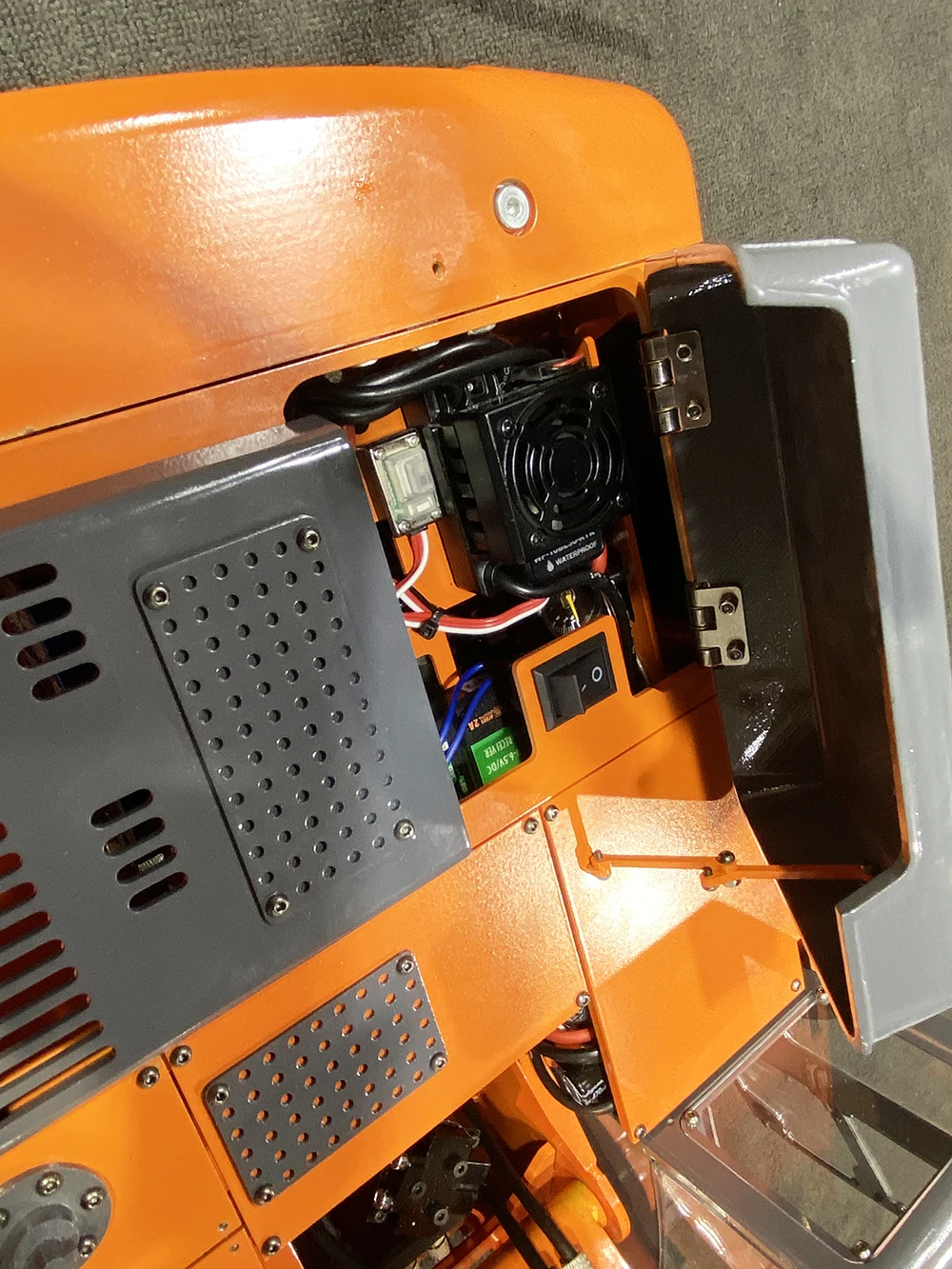

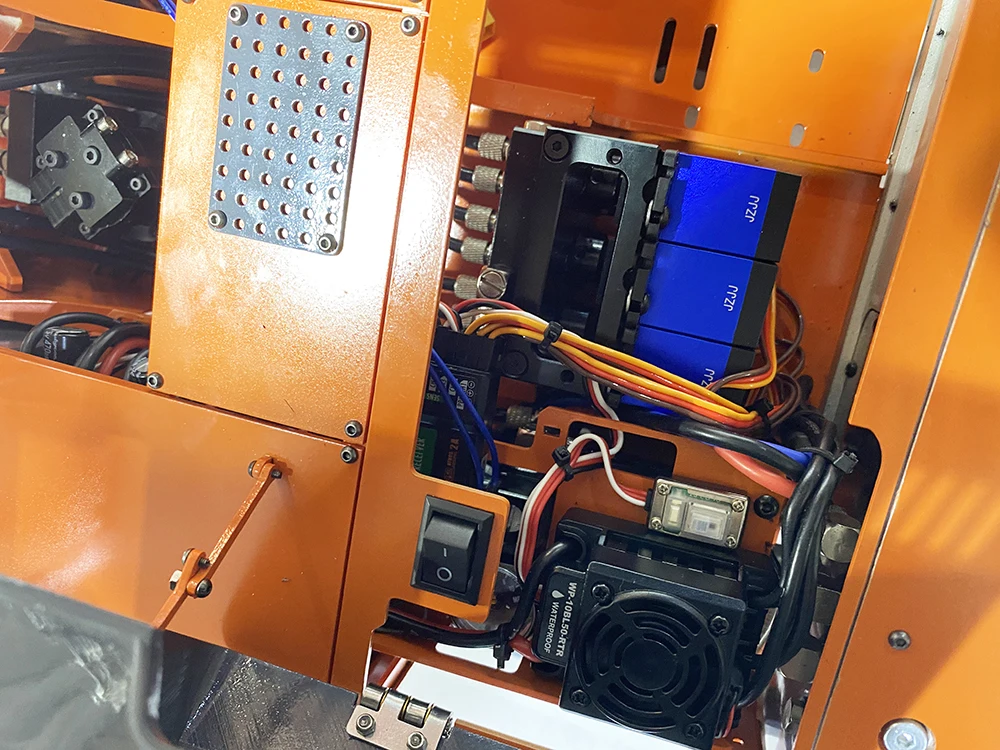

Electrical adjustment: hao ying electrical adjustment

Rotation: kuting latest rotation

Add cooling system

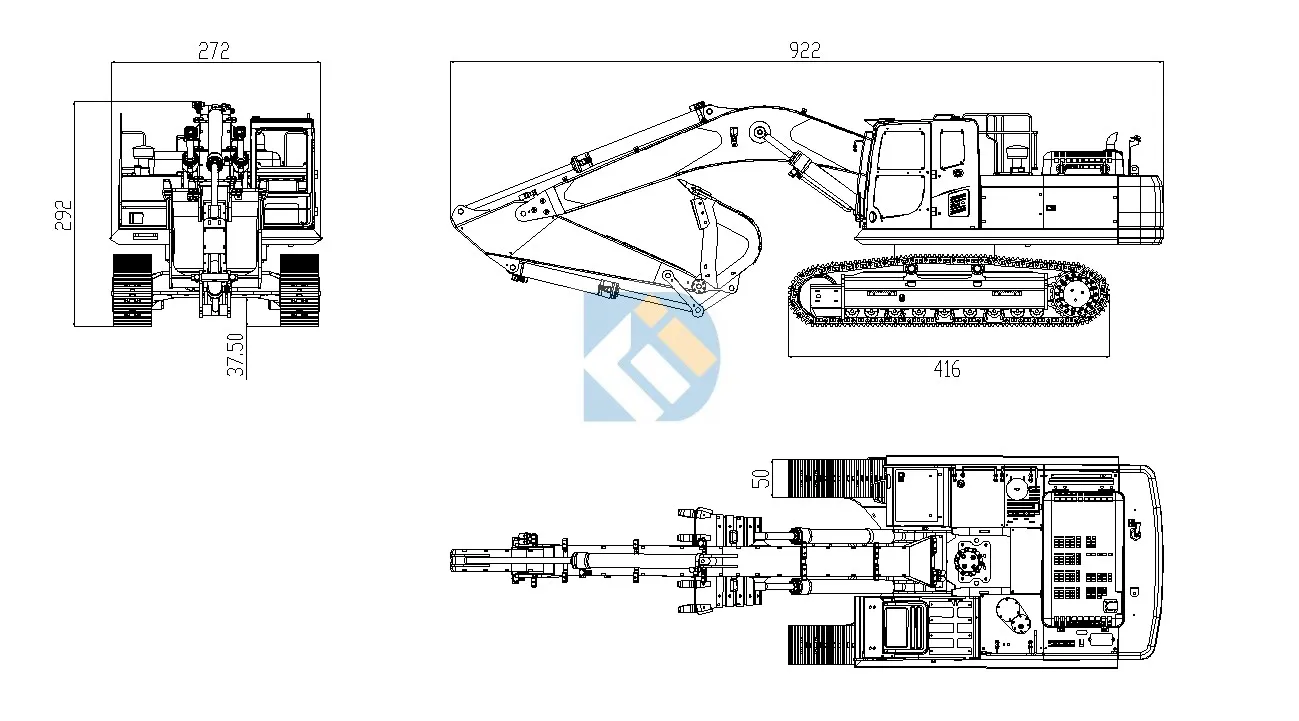

Body size: length* Width * height:922*272*292mm(Transport dimensions)

Track the outer width:272MM

The maximum rise force15KG

The theoretical maximum lifting force60KG

The maximum digging radius893(mm)

Maximum digging depth468(mm)

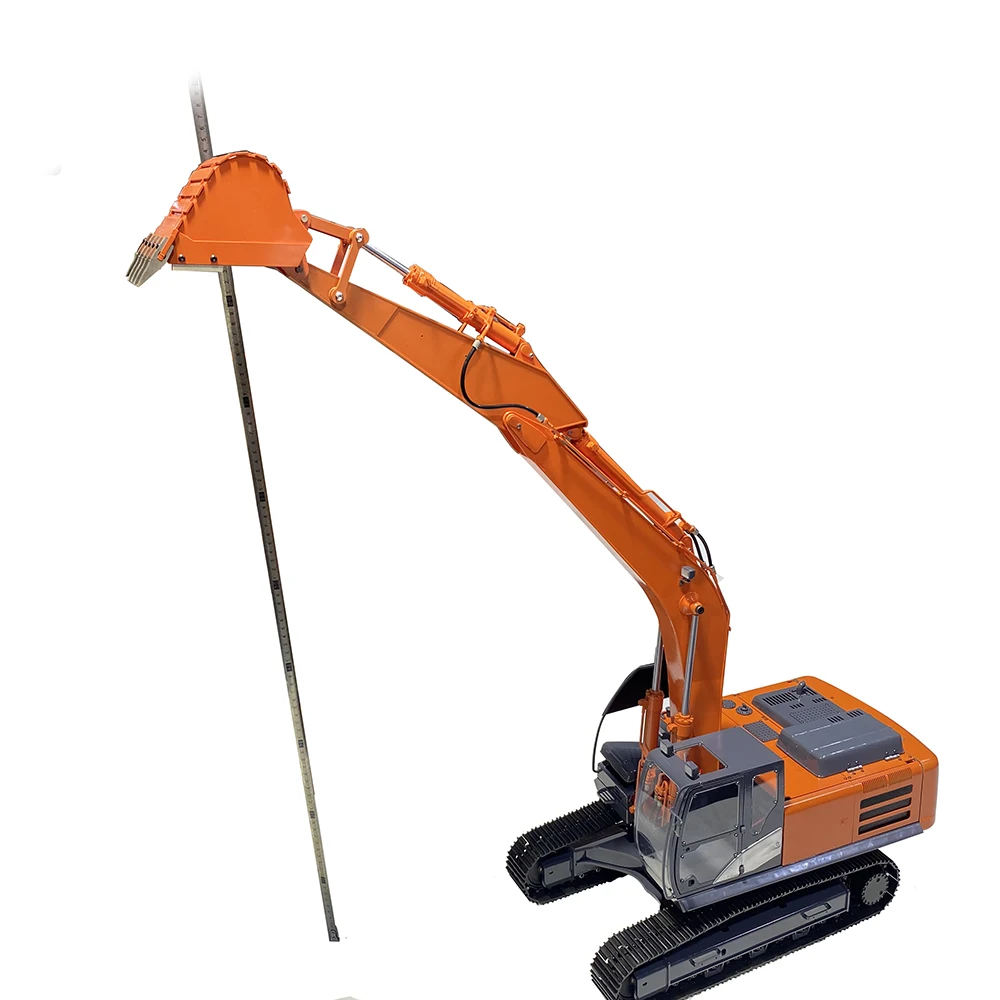

The largest mining height959(mm)

The rotation number: No limit

Chassis minimum ground clearance37.5(mm)

Remote control:FS-9, use 8 No. 5 batteries or 3S lithium batteries (please pay attention to the positive and negative electrode connection method), the battery needs to be purchased separately

Power supply voltage:12V, use 3S lithium battery 5200MHA,(length 140MM width 45MM height 40MM size)

Two pieces can be put in parallel to extend the working time,The battery need to purchase another

Pump Flow1.2L/MIN, rated pressure3. 5MPA (hydraulic system uses No. 32 hydraulic oil by default)

Reversing valve:3-way median oil return high power reversing valve

Cab: seat decoration is not included.

Paint: use car paint
