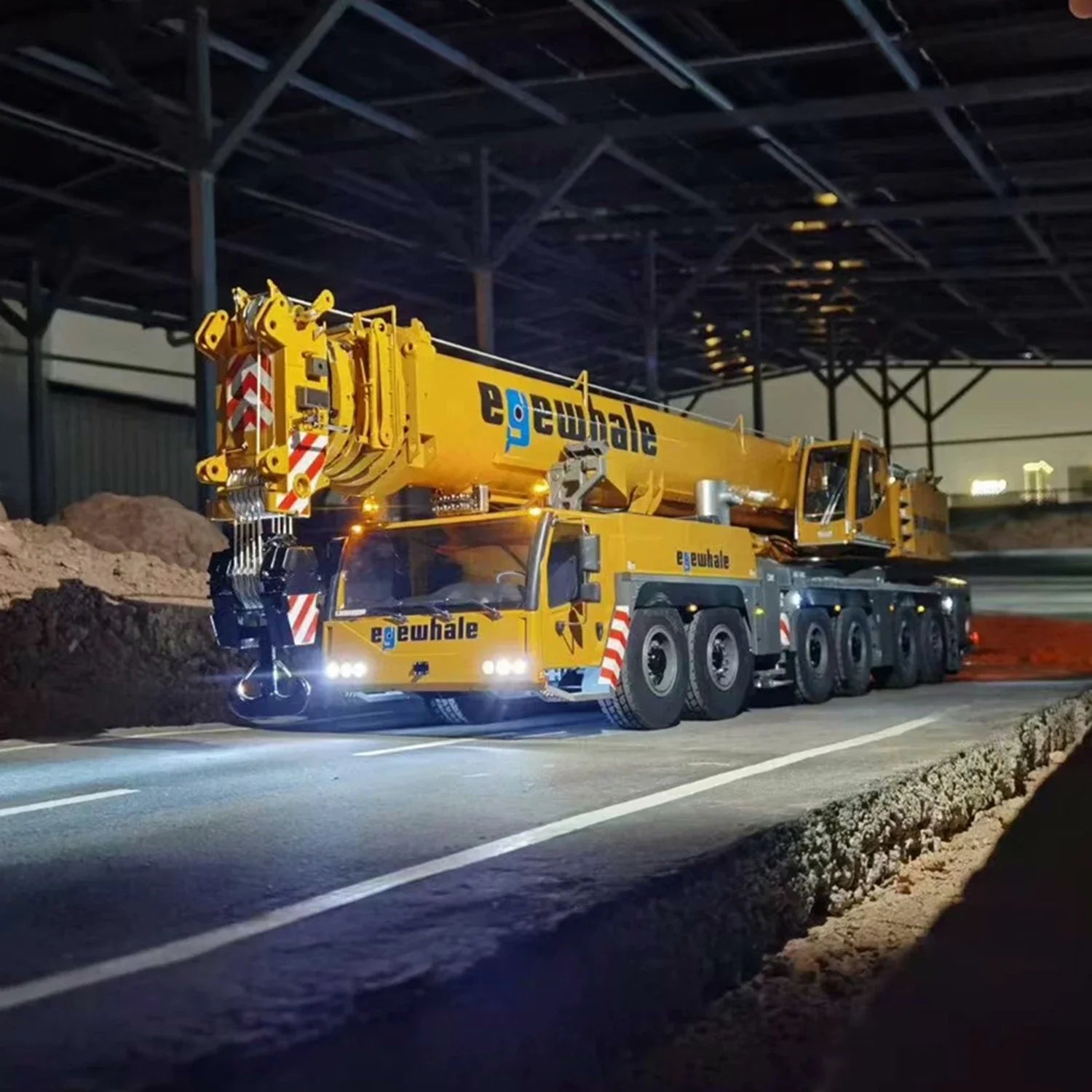

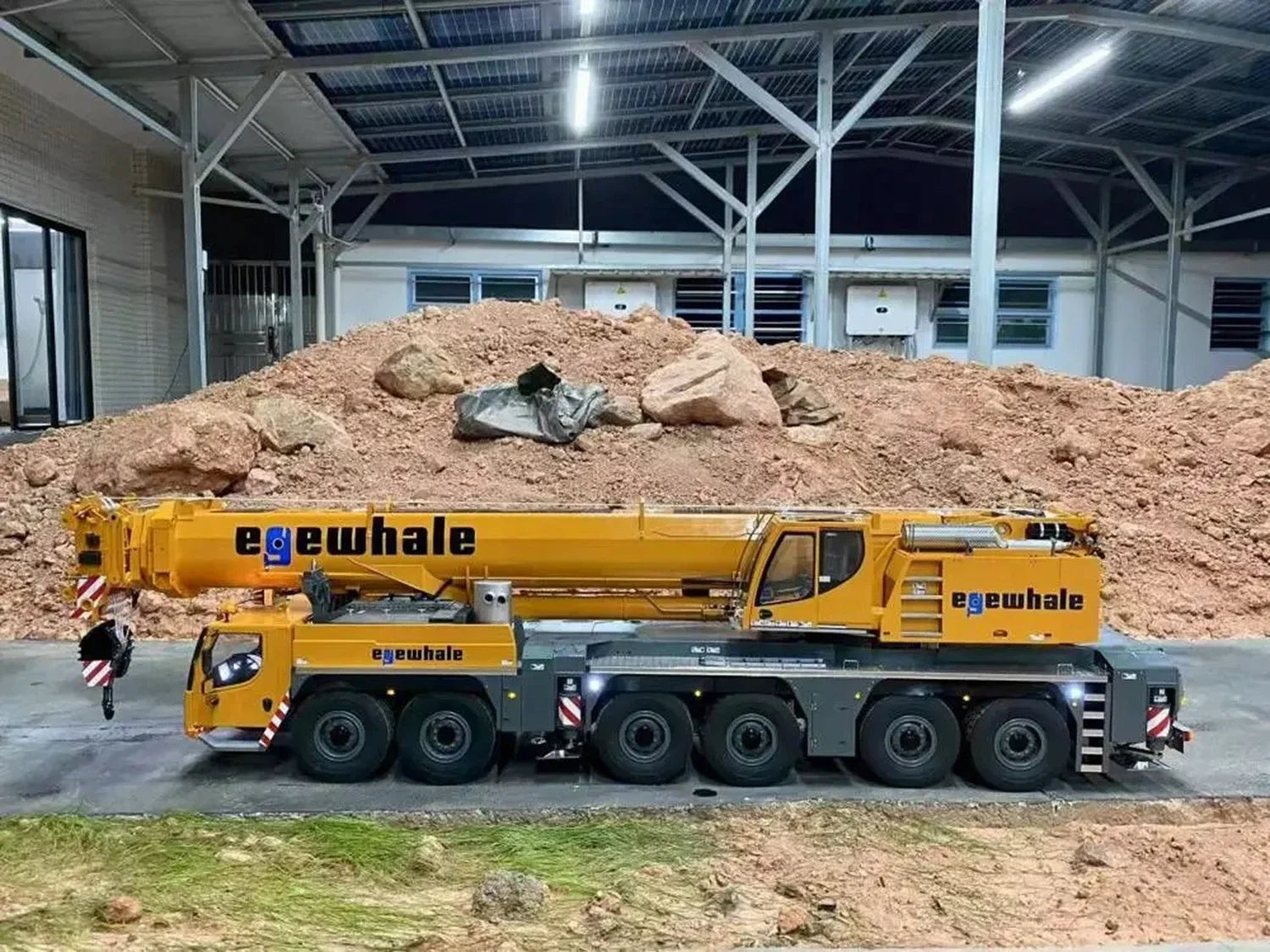

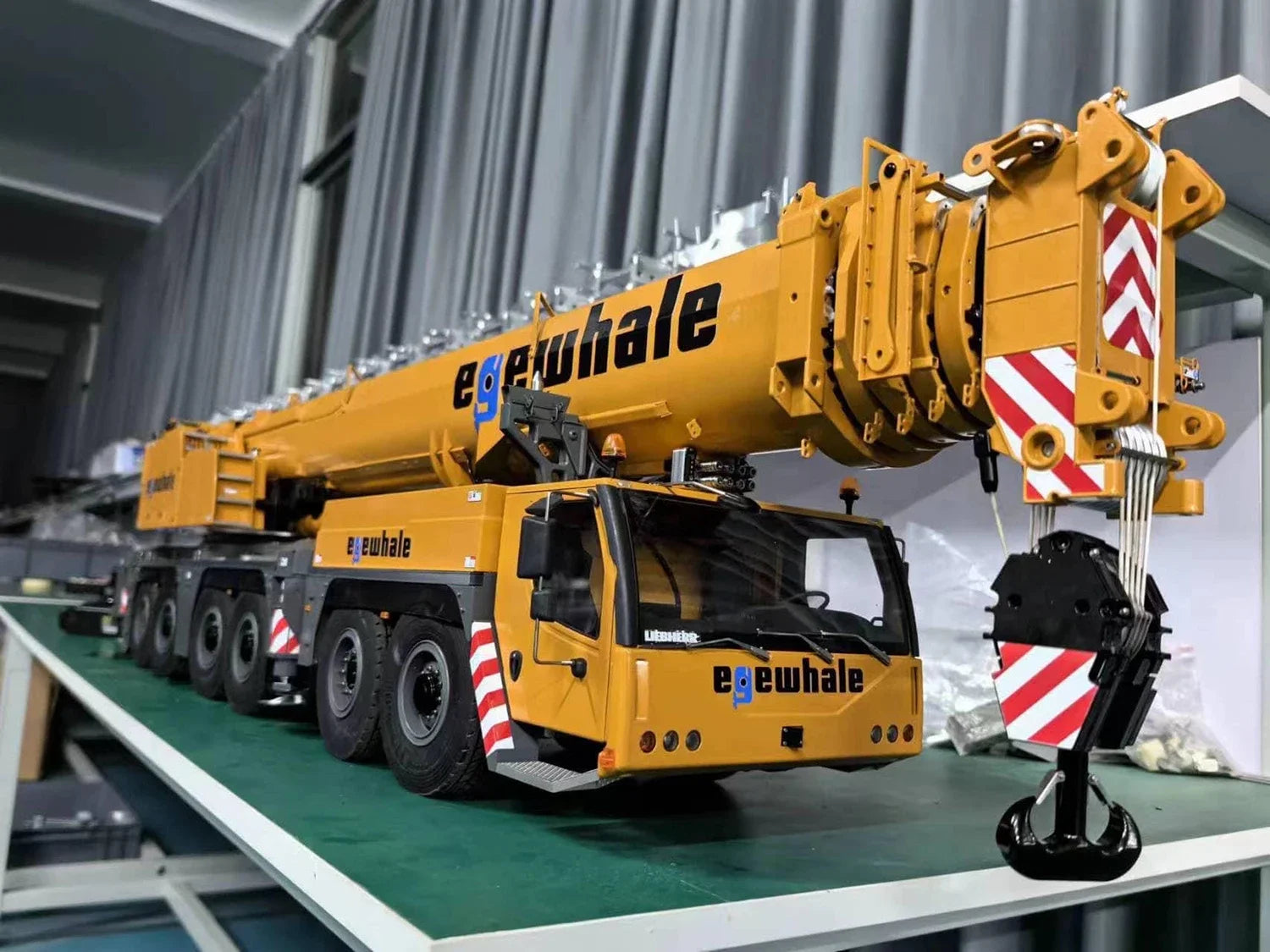

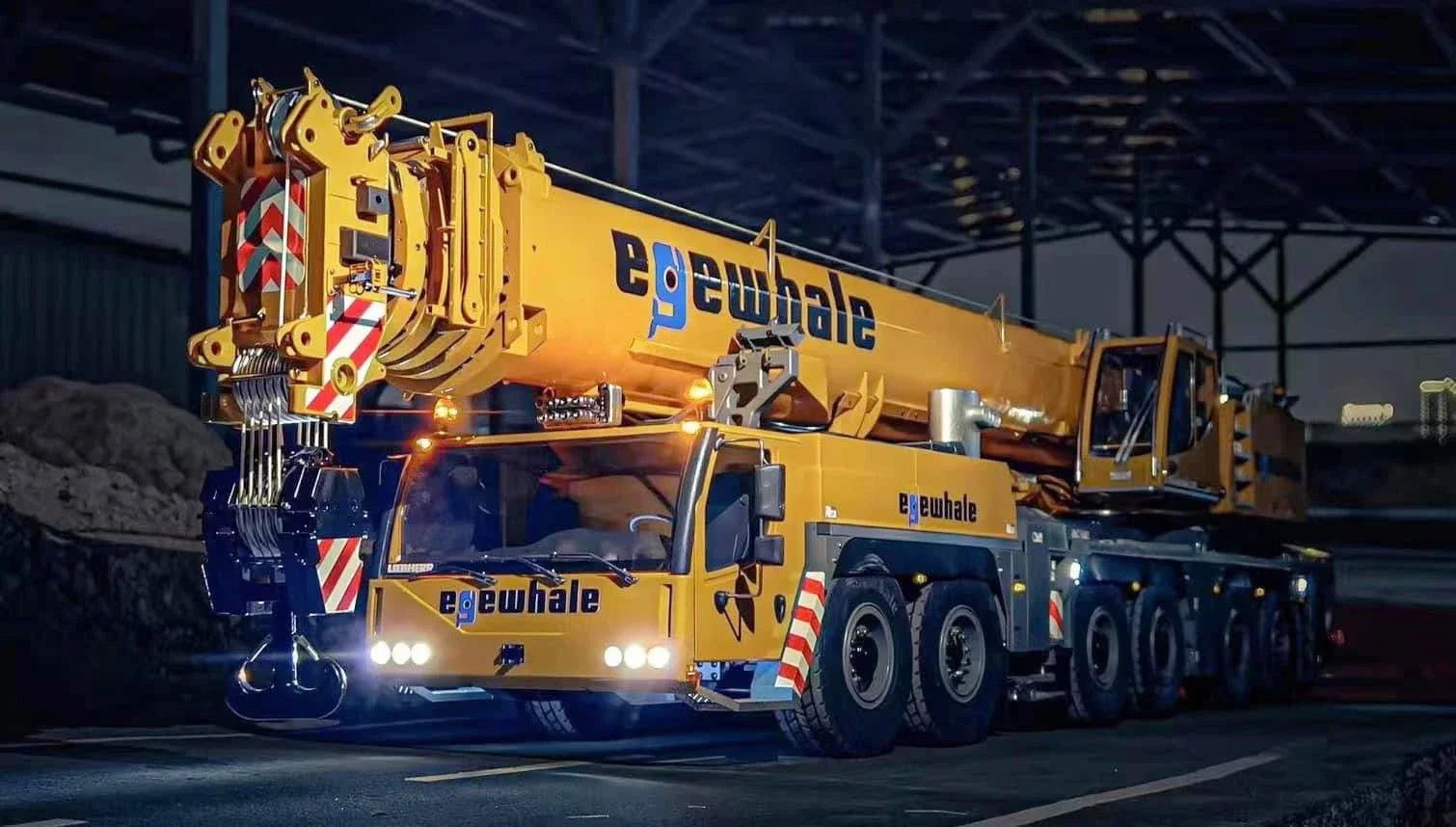

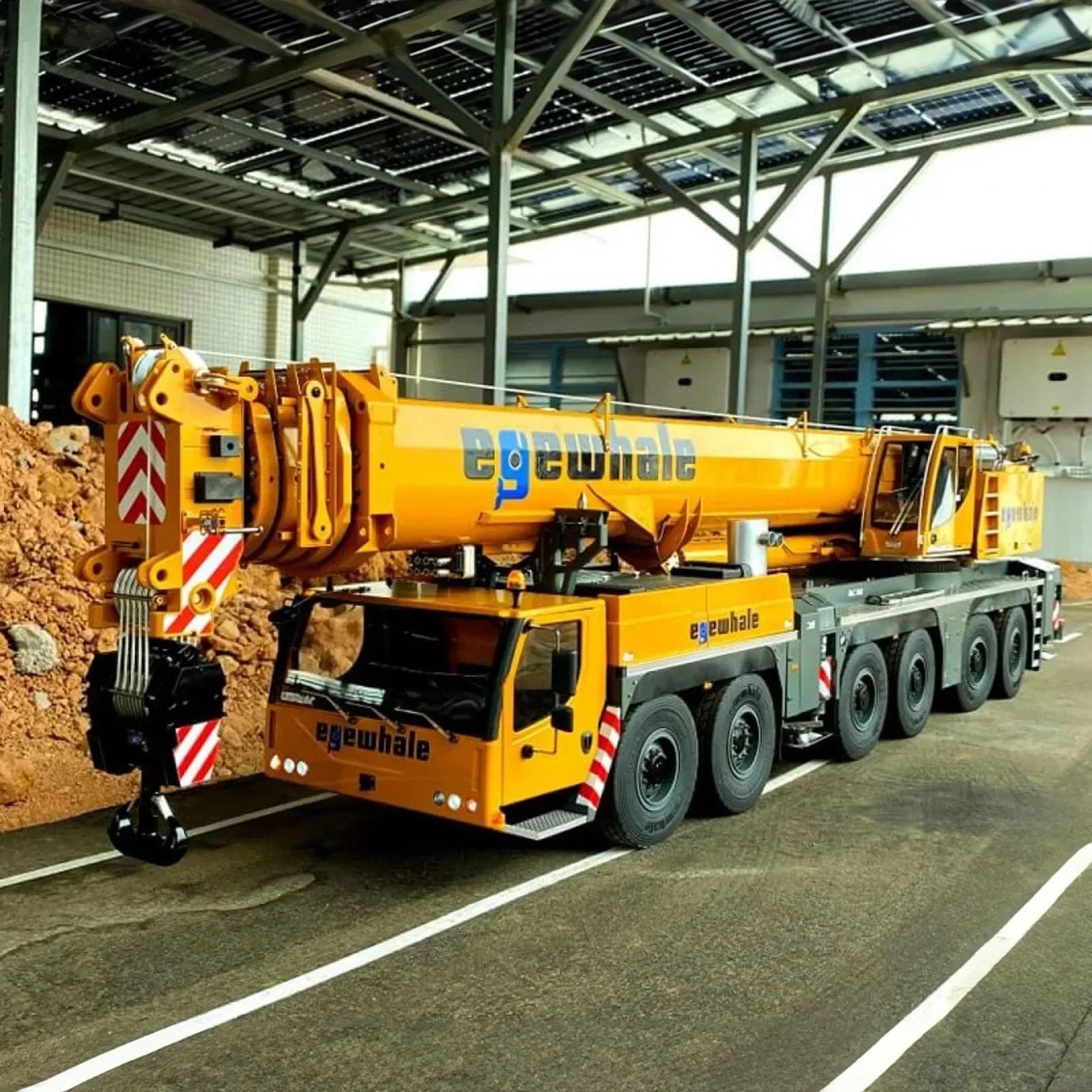

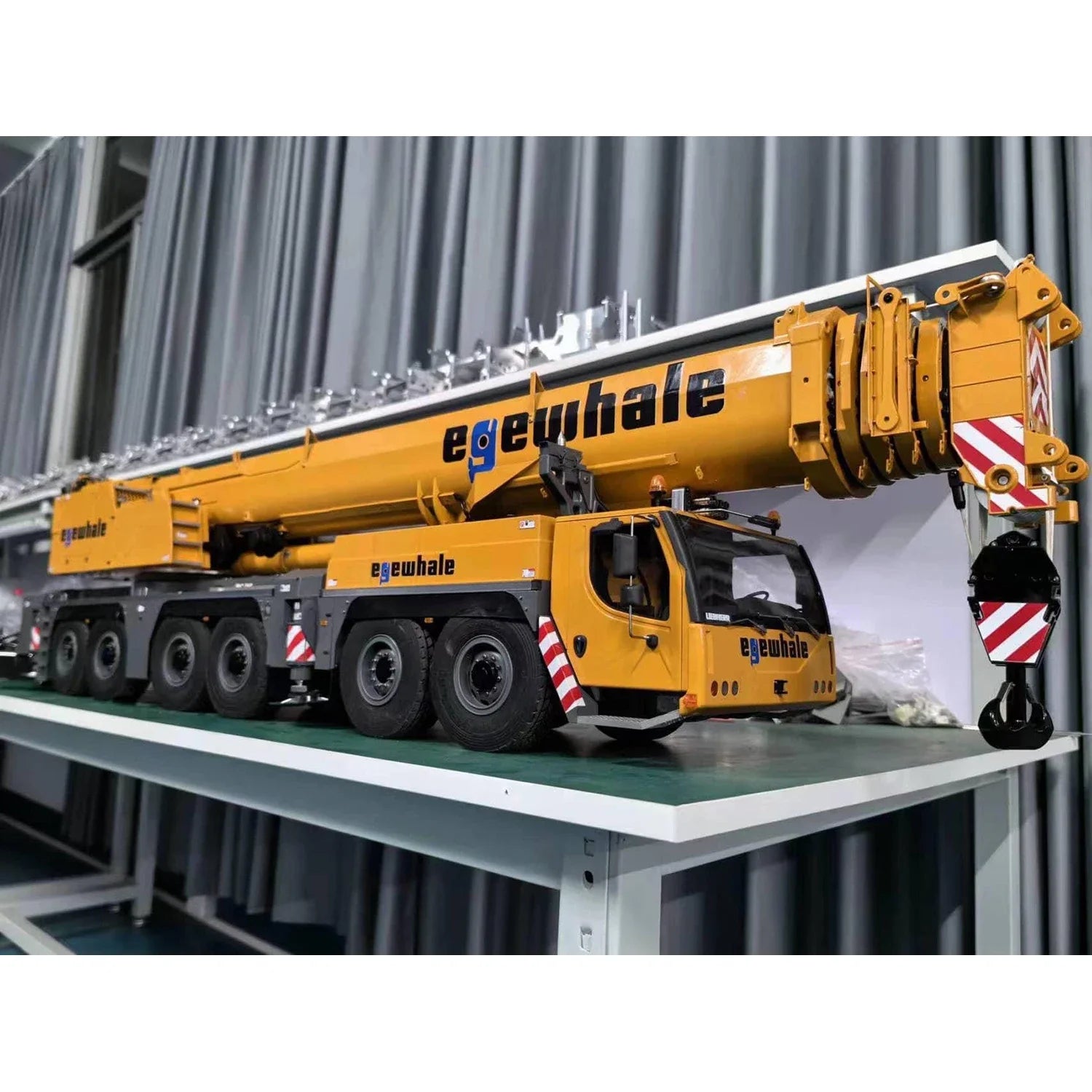

LTM1350 RC Crane 1/14 6-axis Hydraulic Electric Crane Metal Model with PL18 Remote Control Light and Sound System RC Crane Toy
#Specification:
Item Condition: RTR,New, Painted and Assembled
Material: Metal, Plastic
Scale: 1/14
Crane Net Weight (kg): 49
Counterweight (Included) (kg): 34.3 (7.5+4x4.4+4x2.3)
Crane and Packaging Gross Weight (kg): 68
Counterweight and Packaging Gross Weight (kg): 43
Overall Crane Dimensions (mm): 1299x214x300(L W H)

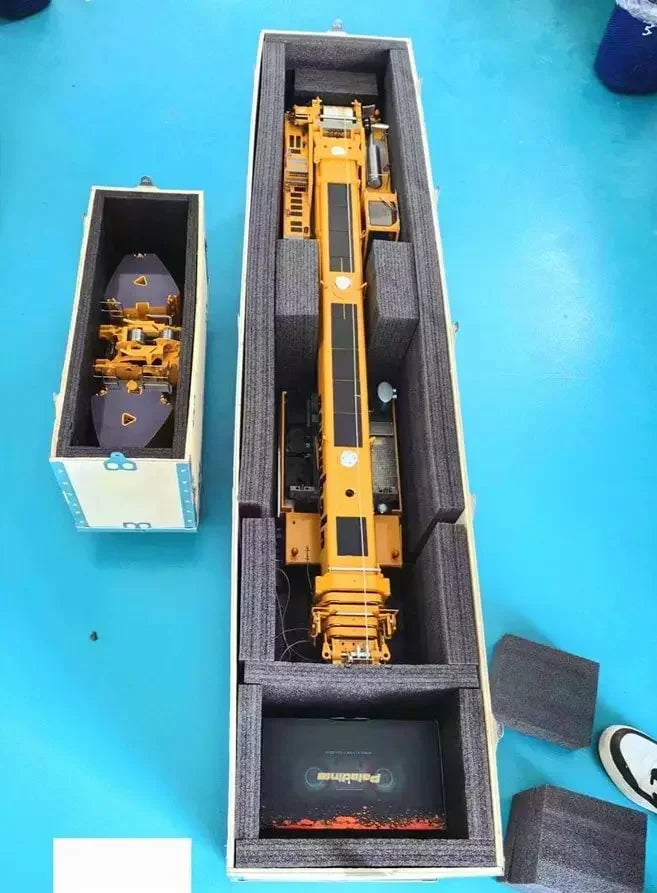

Main Crate Dimensions (mm): 1570x320x460(L W H)
Counterweight Crate Dimensions (mm): 620x220x360(L W H)
#The Package Includes:
1/14 Mobile Crane Model
Hydraulic System
Sound System,Light System
FlySky PL18EV Remote Controller and Receiver
#The Package Does Not Include:
Battery,Charger,Hydraulic Oil
#Parameter:
Telescopic Boom Mechanism: Pin Boom Telescopic Mechanism
Telescopic Boom Sections: 5+1
Power System: Electric+ Hydraulic
Steering Modes: Road Steering/Crab Steering/ Reduced Swing Out Steering/Independent Rear Axle Steering
Drive/Driven Axle Setup: 12x8
Suspension specifications: hydraulic adjustable coilover suspension
Crane Body MateriaL: Metal+ Plastic
Power Source Requirements: 3S battery+ XT60 12V DC power source (Not Included)
Battery Compartment Dimensions(mm): 153x46x36
Receiver Required Channels/ Total Channels: 27/36
Chassis Hydraulic Channels: 4
Superstructure Hydraulic Channels: 7
Maximum Lifting Capacity (kg): 60
Boom Maximum Overall Height (mm): 5000
Turning Radius (mm): R416
Boom Maximum Elevation Angle: 83
Smallest Turning Radius (mm): R1350
Boom Maximum Elevation Angle: 23
Ground Clearance Max/Min (mm): 26/16
The Angle of Approach (W/O Main Hook): 19
Gearbox/Gear Ratio: 2speed 1/32 &1/10
Drive Motor Specifications: 3660 1000KV
Axle Gear Ratio: 1/10
Tire Specifications(mm): 32/φ107.5(445/95R25)
