R920 RC Hydraulic Excavator 1/14 JDM-208 Tracked Excavator Metal Model with Lights and Sound System Remote Control Truck Toy

JDM 208-R92 | 1:14 Scale Professional RC Hydraulic Excavator (Ultimate RTR Package)

Unmatched Engineering & Ready-to-Perform. A True 1:14 Scale Masterpiece with Industrial Precision.

The JDM 208-R92 represents the pinnacle of ready-to-run RC hydraulic models. Built to a precise 1:14 scale with a commanding weight of 8.3kg, it combines a rugged CNC stainless steel chassis with a fully integrated, leak-resistant hydraulic system. Every component, from the 25kg-torque rotation motor to the industrial-grade valves, is selected for power, reliability, and ultra-realistic operation. Delivered as a complete Ultimate RTR Package with the premium FlySky PL18EV radio, it offers an unparalleled out-of-the-box experience for the serious collector and operator.

⚙️ Technical Specifications

Static Dimensions (Key)
| Width (Body/Track Max) | 194 mm / 213 mm |
| Wheelbase / Track Spacing | 239.1 mm / 163 mm |
| Ground Clearance (to Cab Top) | 221.3 mm |

Dynamic Performance
| Rotation | 360° Continuous | Torque: 25 kg | Speed: 9.5 RPM |
| Drive System | Max Speed: 30 RPM | Gear Reduction: 1:256 |
| Hydraulics | Cylinder Thrust: 15 kg | Max Pressure: 4 MPa |
| | Rated Pressure: 2.5 MPa |

📦 Ultimate RTR Package Contents

✅ EVERYTHING INCLUDED (Ready-to-Run):

• Fully Assembled 1:14 Excavator (JDM 208-R92)

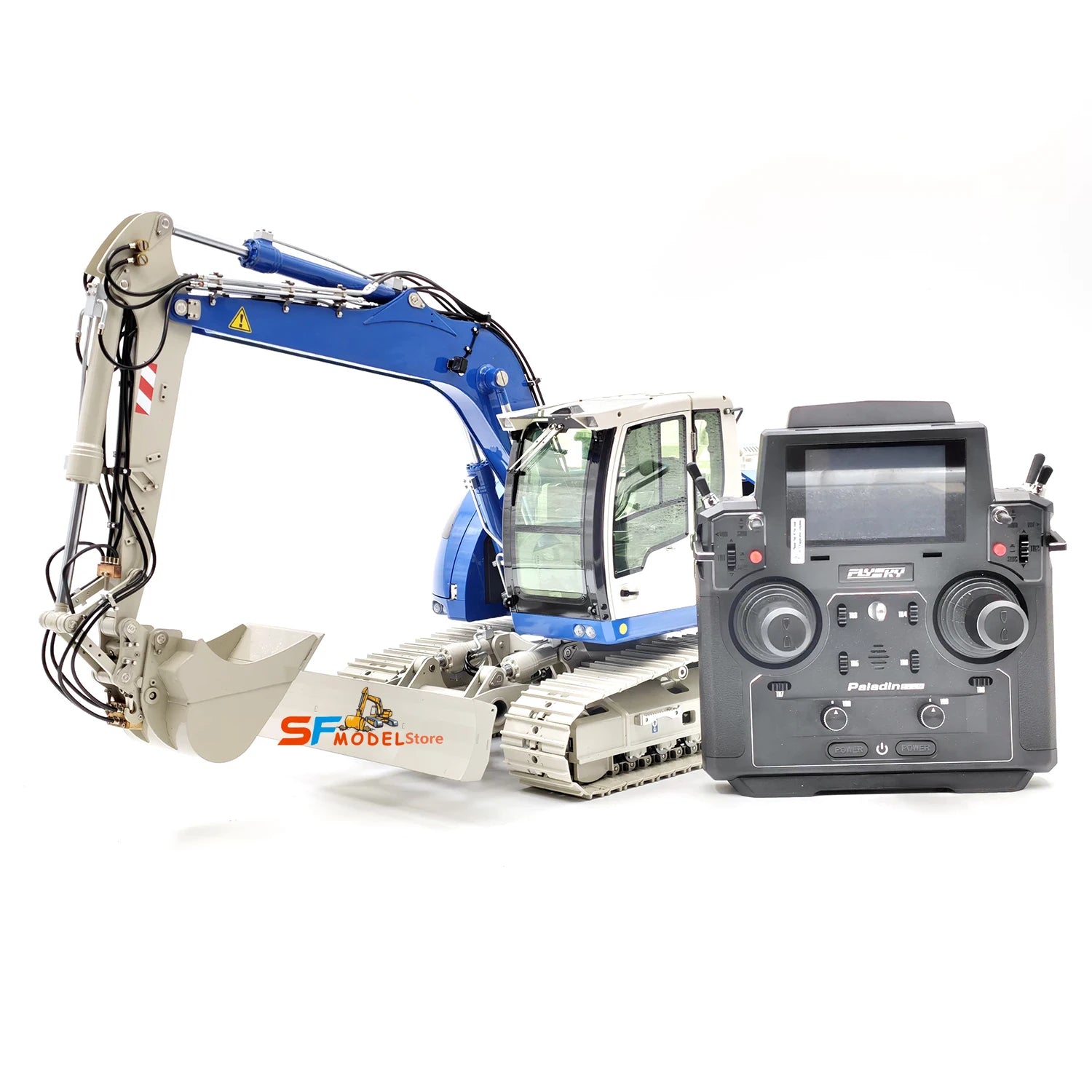

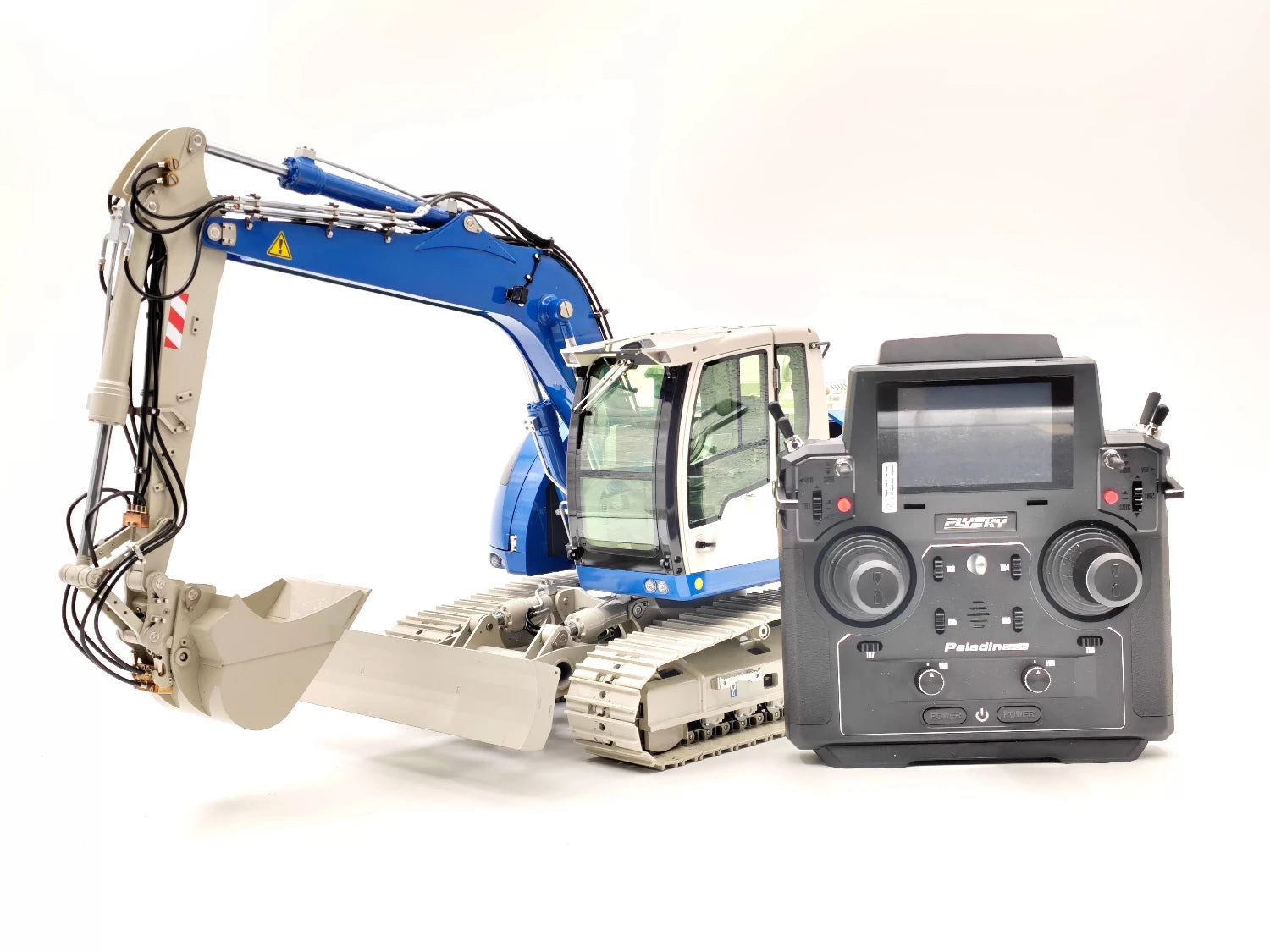

• FlySky PL18EV Professional Radio System

• High-Capacity Vehicle Battery & Charger

• Full Electronics (ESC, Motor, Servo)

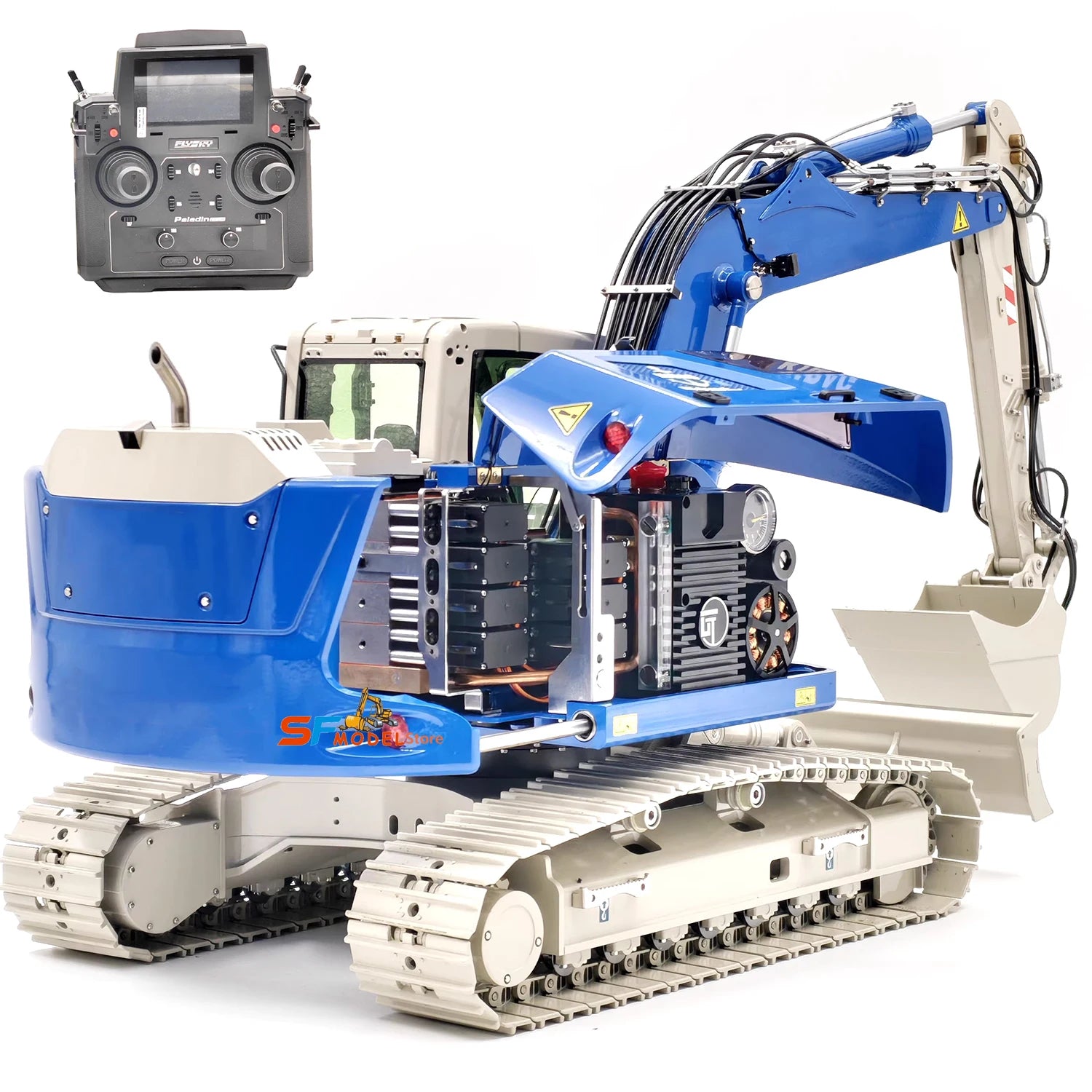

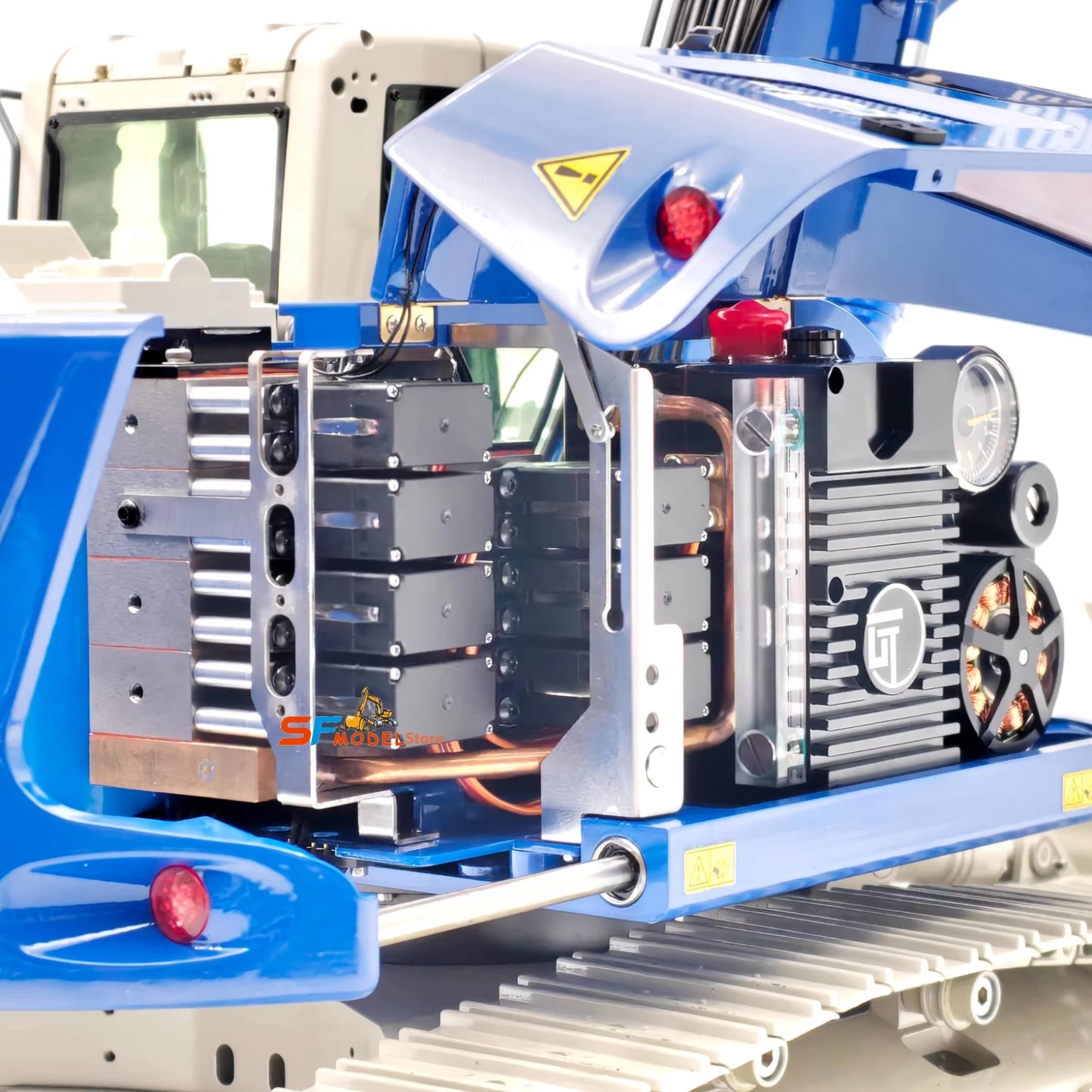

• Integrated Hydraulic Pump Station (Oil Tank & Pump)

• Standard 7-Way Proportional Hydraulic Valve

• Realistic Sound & LED Lighting Systems

⭕ NOT INCLUDED (For Final Setup):

• Quick Connectors (for auxiliary tools)

• Hydraulic Oil (for safe shipping; easy fill kit instructions provided)

🚜 Engineering & Design Features

1. Industrial-Grade CNC Construction: The body and key structural components are crafted from CNC-machined stainless steel for exceptional durability, weight, and an authentic finish. The integrated CNC chassis houses a powerful brushless drive motor.

2. Advanced Leak-Resistant Hydraulics: Features an innovative proportional 7-way valve for smooth, precise control. The star-shaped sealed rotary joint and optimized cylinder design, paired with an integrated pump/tank unit, dramatically reduce leak risks and simplify maintenance.

3. High-Torque Drive & Rotation: A 1:256 reduction gearbox delivers massive traction, while the 25kg-torque rotation motor ensures stable, powerful 360° slewing even under load.

4. Enhanced Realism & Customizability: Pre-drilled track links allow for the addition of rubber pads for grip and floor protection. The CNC boom comes pre-drilled, facilitating easy future modifications or accessory installations.

5. The Complete Premium Experience: This "Ultimate RTR" package spares no detail. It includes the top-tier PL18EV radio and all systems pre-installed, requiring only hydraulic fluid filling to begin complex, realistic excavation operations.

⚠️ Operator's Note

• Target User: Designed for advanced hobbyists and adult collectors seeking a high-fidelity, fully-functional scale model.

• Final Setup: Requires adding hydraulic oil (standard ISO VG 46 or equivalent) via the provided instructions. Quick connectors are for future auxiliary tool compatibility.

• Performance: With 15kg cylinder thrust and a robust drive train, it is capable of performing realistic digging and material handling tasks.

The JDM 208-R92 isn't just another model—it's a benchmark. Experience the depth of engineering made accessible in one complete, premium package.
