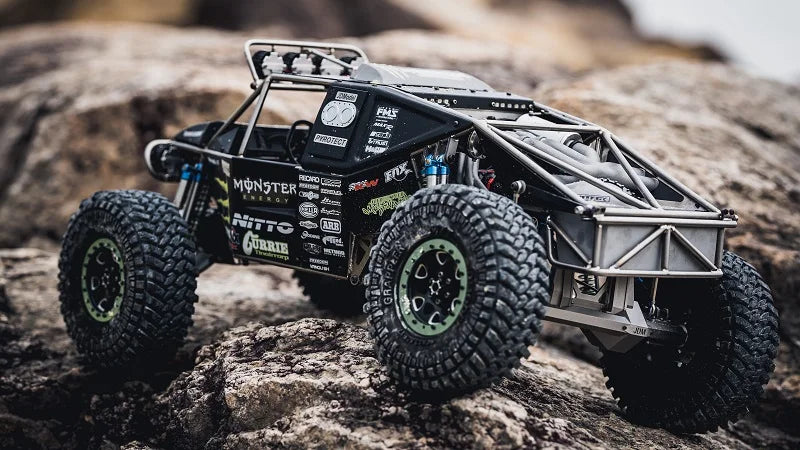

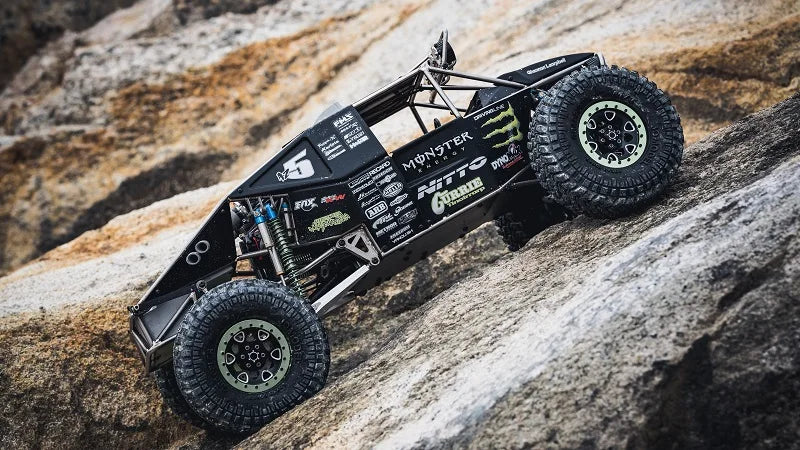

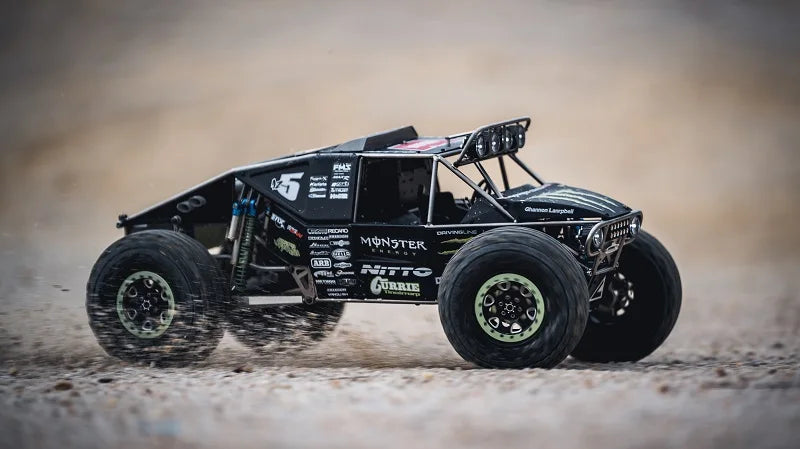

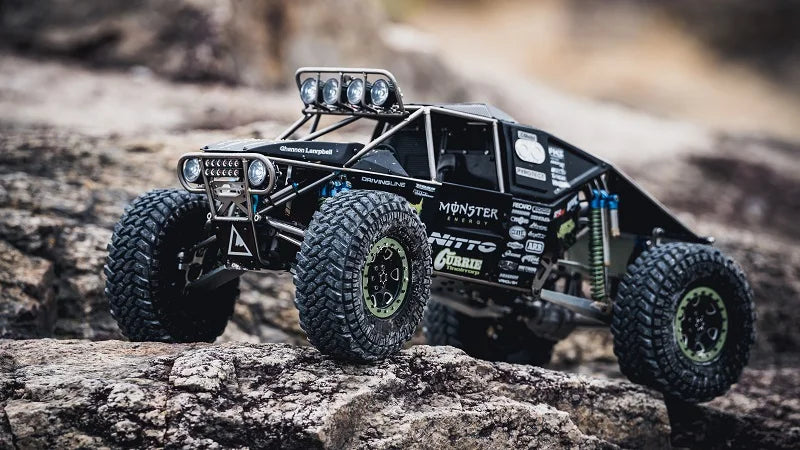

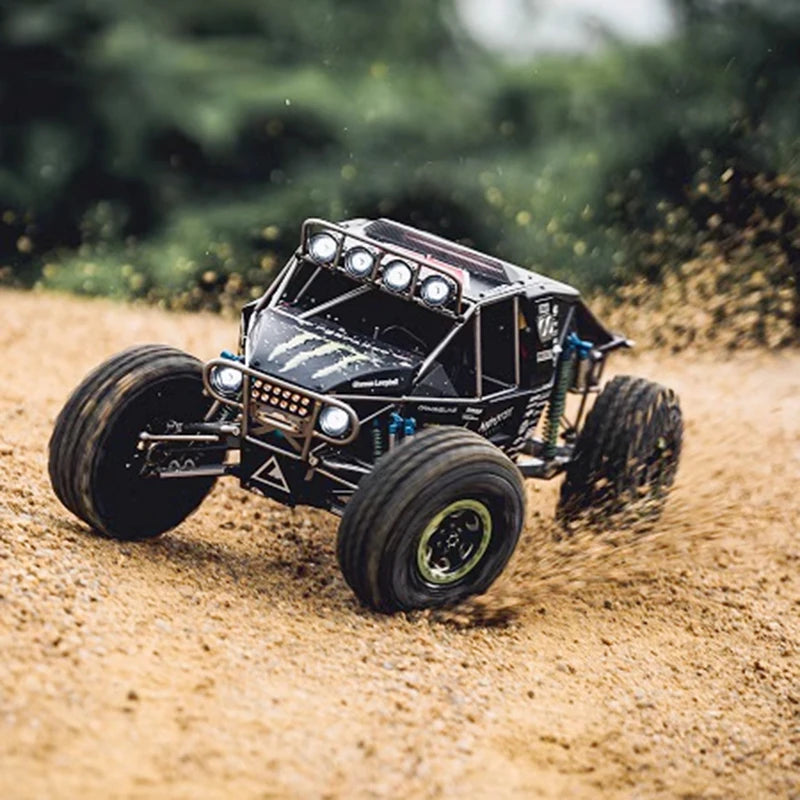

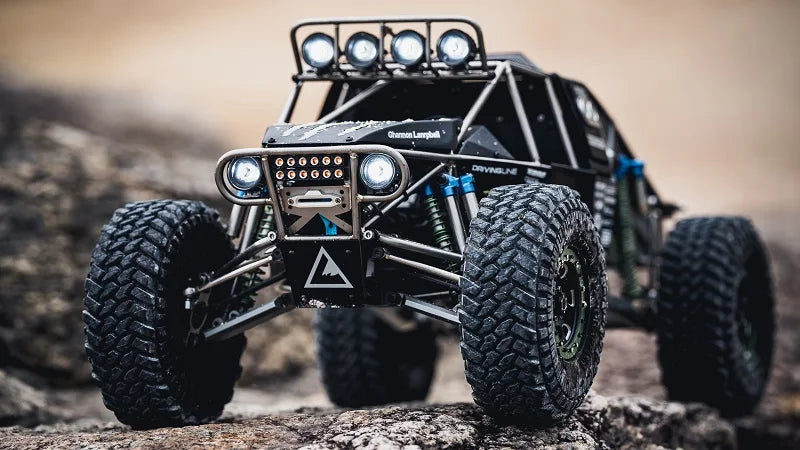

1:10 Dragon Slayer Quake racing model (titanium alloy pipe frame)
Scale: 1:10
Dimensions: length 490MM, width 279MM, height 215MM
Weight: Net weight of the car is 5KG, after packaging: 11KG

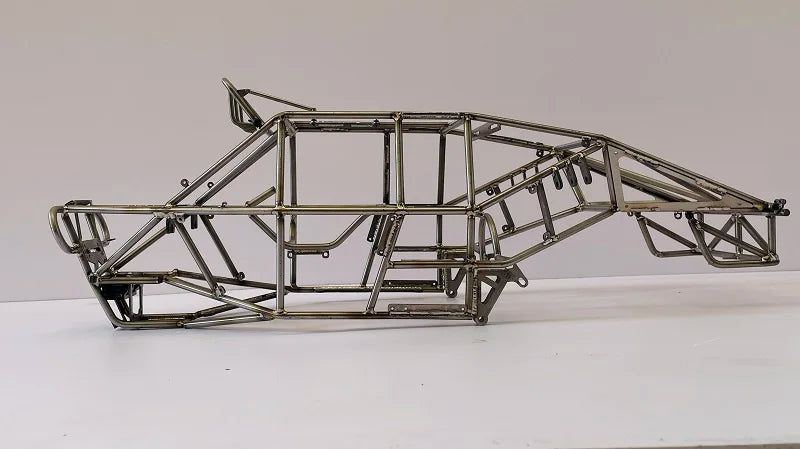

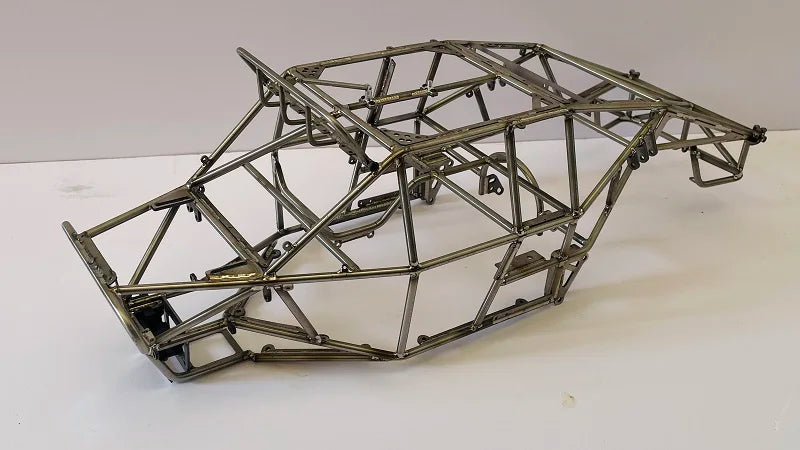

Material: The pipe frame is welded with titanium alloy, and the axle hub is aluminum alloy CNC.
The gearbox is made of nylon, the decorative parts are 3D printed from aluminum alloy, and the shell is blister-molded

Configuration: Steering servo CH1, Desheng 35KG powerful servo
Power: CH2 uses Hobbywing WP-Fus ion 1200KV-body engine (with built-in ESC)
Locking servo: CH3 S015 standard servo (front and rear axles are locked together)
Shift servo: CH4 DS009 9G servo
Interruption servo: CH5 DS009 9G servo

Remote control: need to purchase by yourself (more than 6 channels)

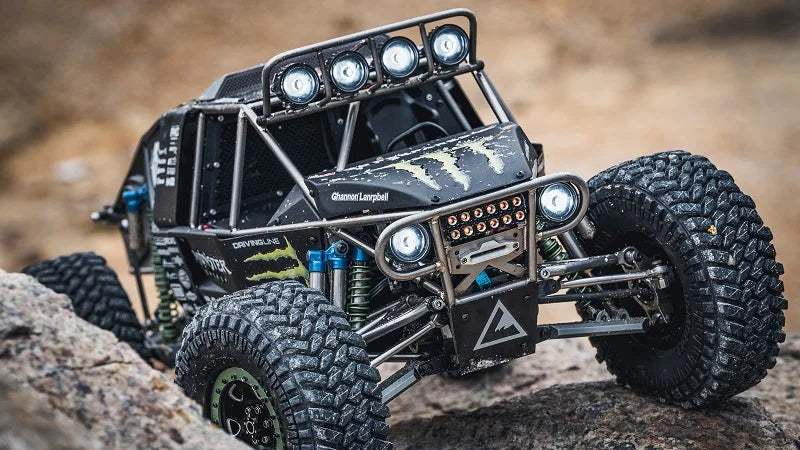

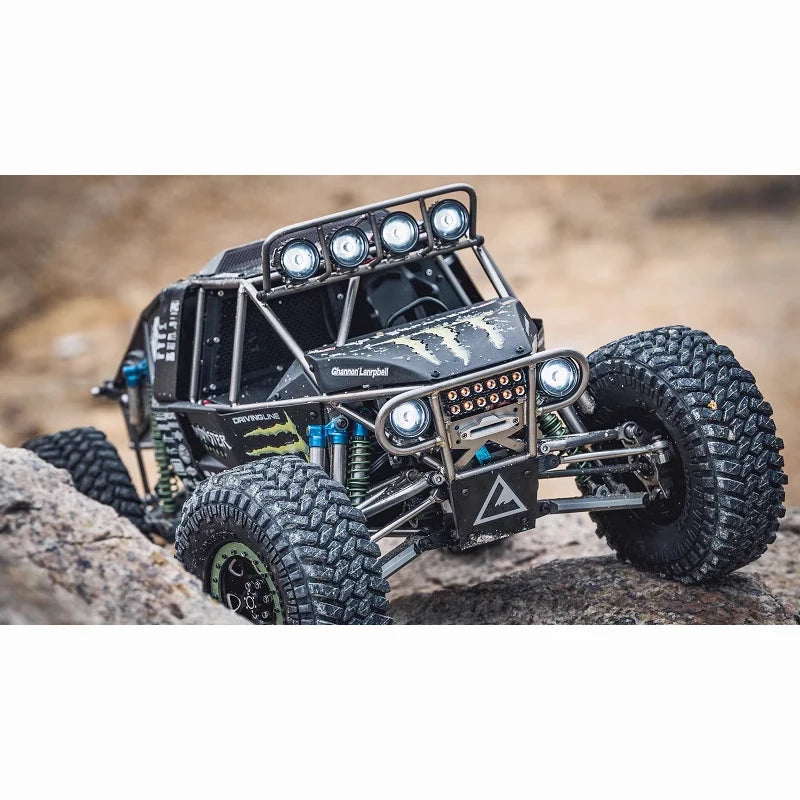

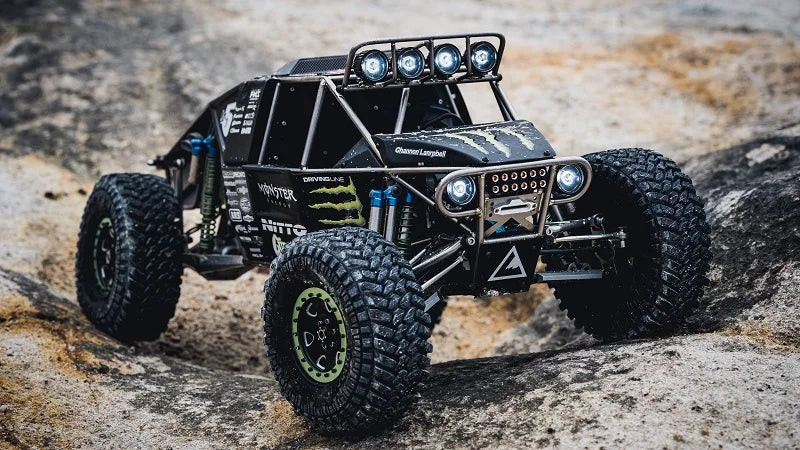

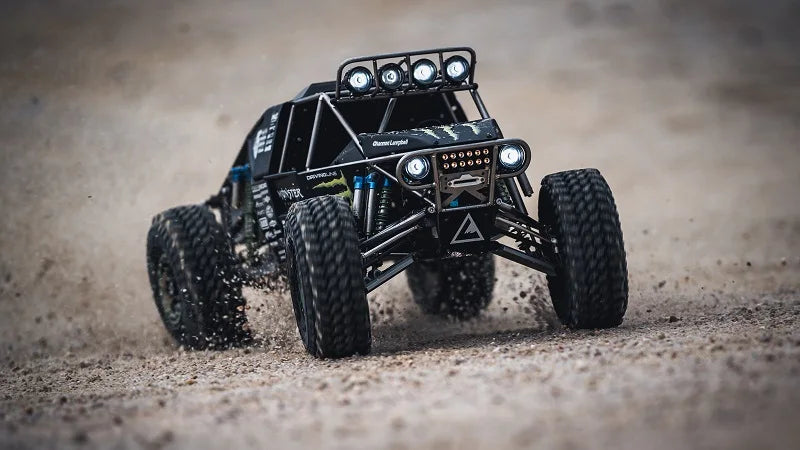

Lighting: CH6 comes standard with a customized light set, with brake taillights, dome lights, headlights, and front strip lights.
Tires: Use simulated TT MT tire pattern, diameter 133MM and width 47MM
Wheel hub: simulated aluminum alloy CNC wheel hub

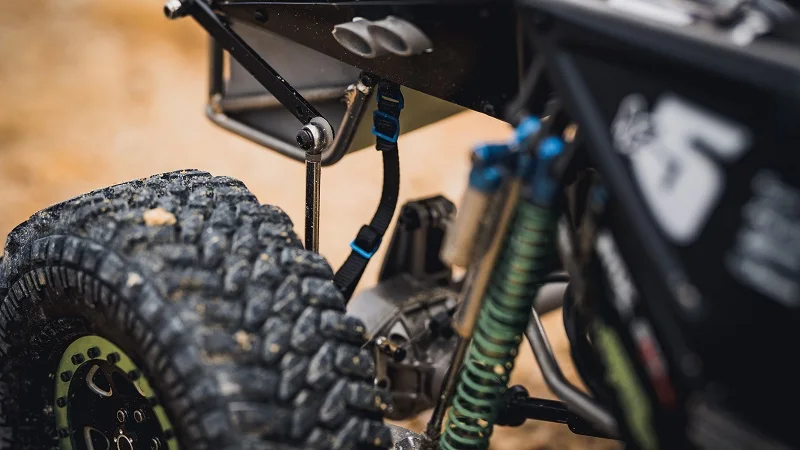

Shock absorber: negative pressure coiled shock absorber, negative pressure damping shock absorber
Drive shaft: metal simulated drive shaft

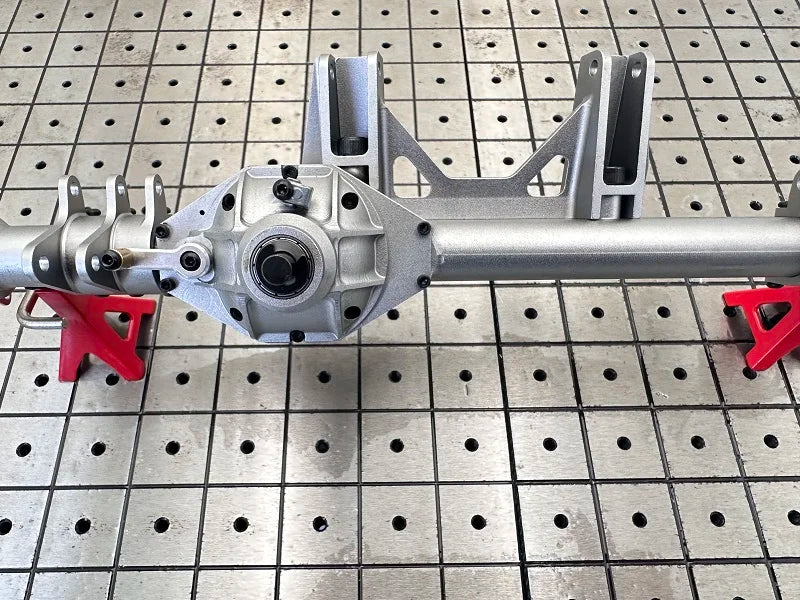

Axle: CNC machined F9 axle, front independent rear straight axle, differential lockable

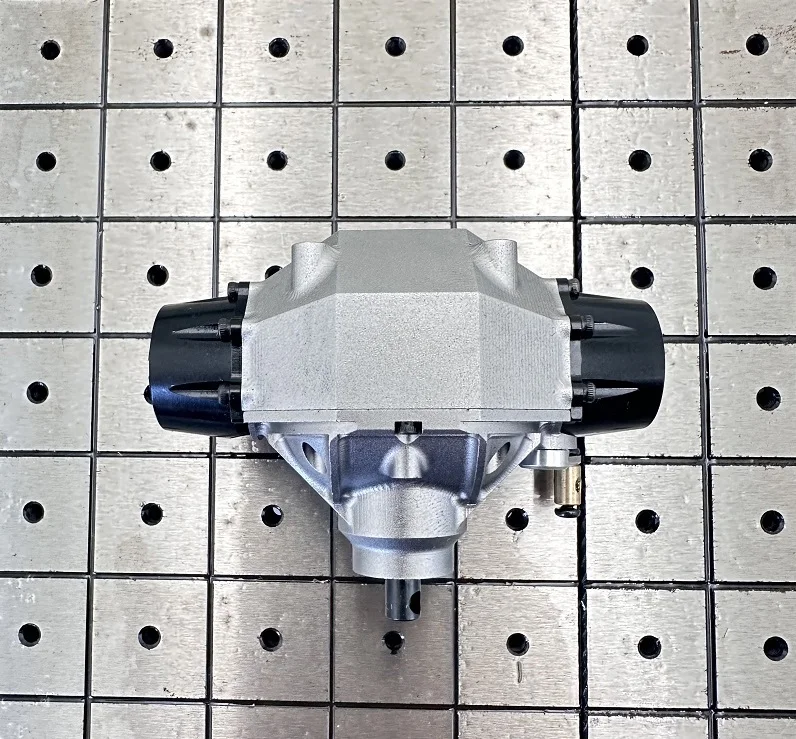

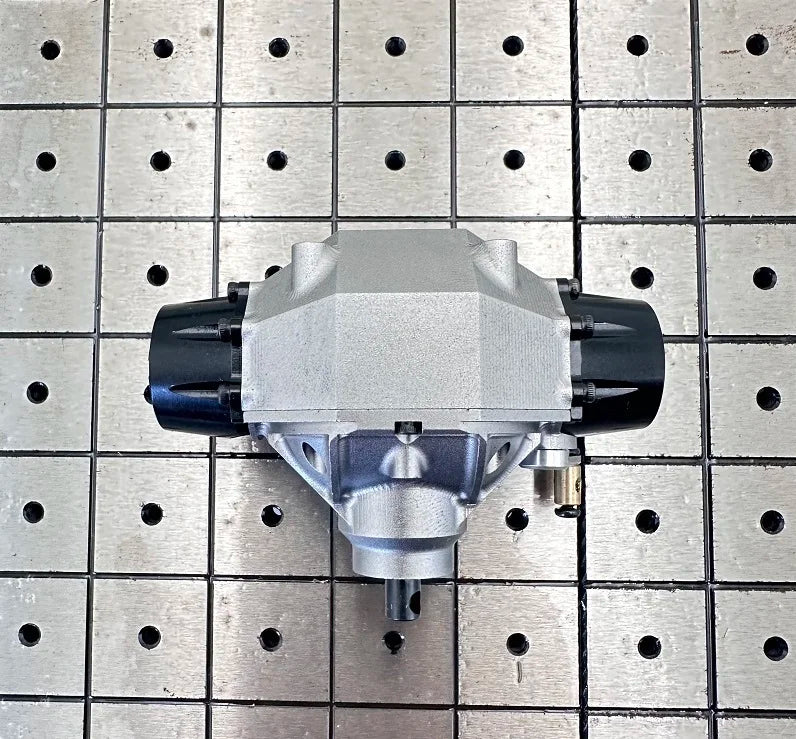

Transmission: simulated two-speed planetary transmission, front-wheel drive and four-wheel drive mode

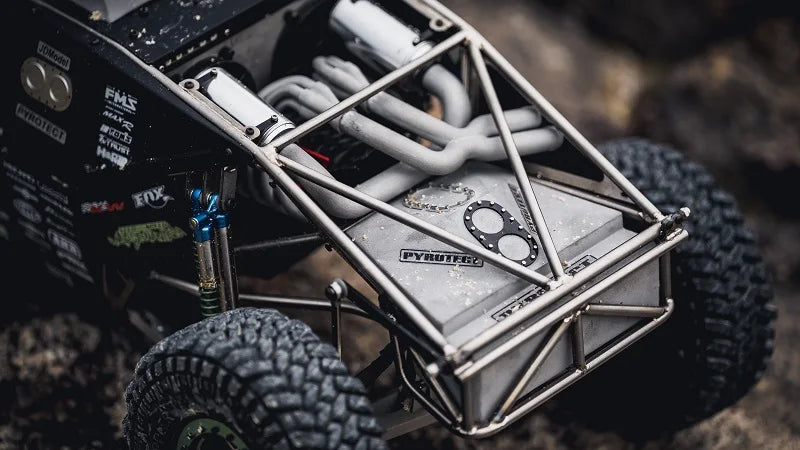

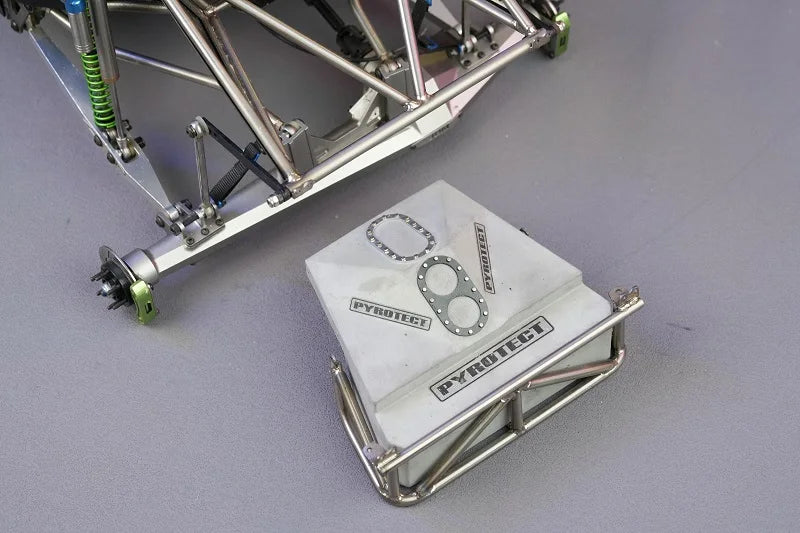

Decorative parts: engine exhaust pipe, cabin shroud, air filter pipe, and fuel tank are all 3D printed from aluminum alloy

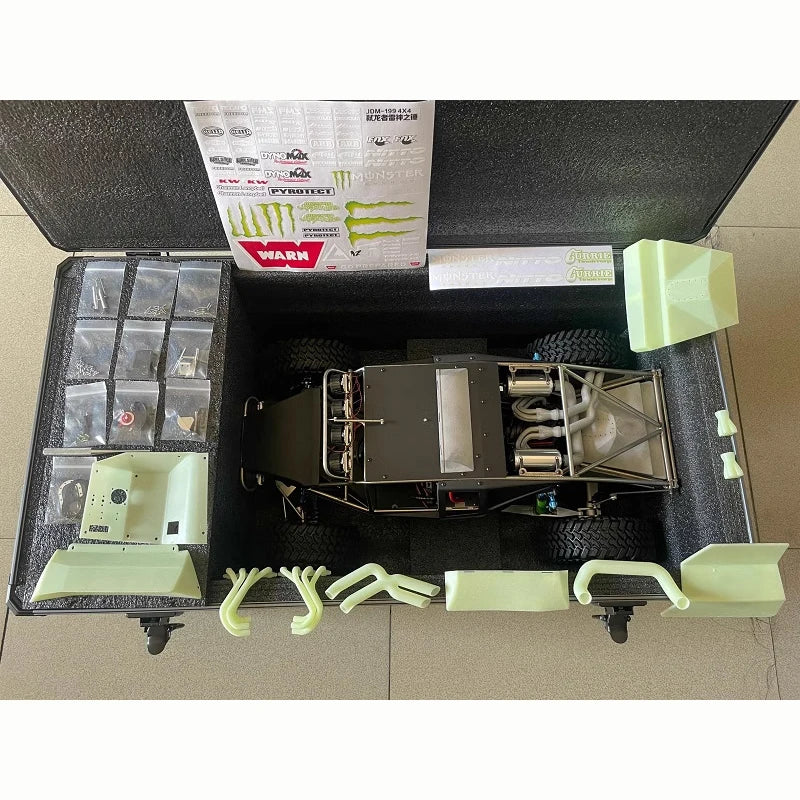

Packaging: Standard aluminum box
Free sticker*1


Note: Due to the special structure of this vehicle, the titanium alloy pipe frame of the entire vehicle is manually cut and welded;

There will be certain errors and manual traces in the production (please model friends know), and there will also be certain manual traces in the vehicle shell and the fixing parts of the decorative parts.;

The fuel tank, exhaust pipe, and air filter pipe (aluminum alloy 3D printed without paint) have all been installed on the car.
At the same time, resin prints of these parts will be given to model friends.

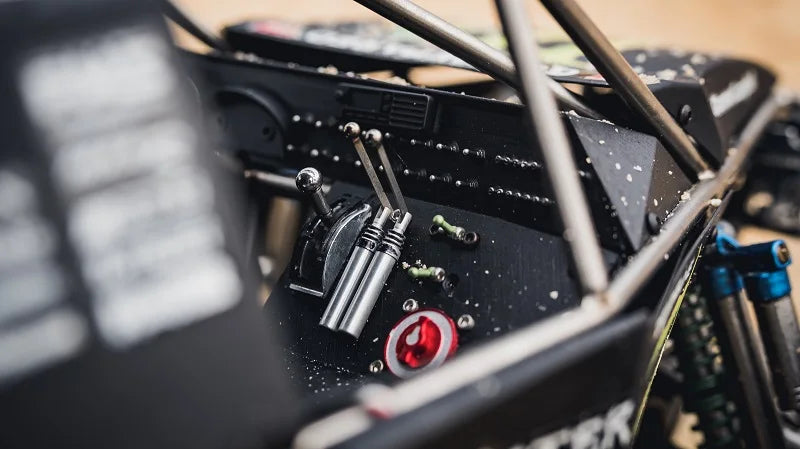

The center console passenger equipment compartment is a resin print and requires the modeler to do it himself;

Painting and installation of small accessories. The steering gear and all-in-one machine are already installed on the vehicle when shipped.
When debugging electronic equipment, pay attention to the servo stroke when adjusting the lock differential, shifting gears, and disconnecting transmission. The tension of the cable should be controlled until it reaches the function. Do not continue to output a lot of force after tightening. This will easily burn out the servo and cause mechanical damage. Damage to parts.

SF MODEL wishes you a happy racing and experience the charm of racing.
