Model AT6 1/10 Professional 6x6 RC Crawler Pickup - 6WD Off-Road Truck with 2-Speed Transmission, Differential Lock & Portal Axles (RTR/KIT)
Model AT6 1/10 Professional 6x6 RC Crawler Pickup - 6WD Off-Road Truck with 2-Speed Transmission, Differential Lock & Portal Axles (RTR/KIT)
Verfügbarkeit für Abholungen konnte nicht geladen werden
Model AT6 1/10 Professional 6x6 RC Crawler Pickup - 6WD Off-Road Truck with 2-Speed Transmission, Differential Lock & Portal Axles (RTR/KIT)
The fifth masterpiece in the acclaimed EMO series, the AT6 builds on a proven ultra-low center of gravity platform with a third axle for unmatched traction and stability. Engineered to dominate steep inclines, deep mud, and rugged trails with unstoppable capability.
2023 Key Upgrades
-
Enhanced Drivetrain: Axle shafts upgraded to special high-strength steel for extreme durability.
-
Reinforced Materials: Portal axle housings feature upgraded nylon formula, tested to -30°C.
-
Steering Protection System (KIT version): V3.0 servo protection for “adjustment-free” installation.
Technical Highlights
| Feature | Benefit |
|---|---|
| 6x6 Drivetrain | "Bridge-over" third axle design reduces stress for longevity. |
| Remote Diff Locks | Independent servo-controlled locks on all three axles for total traction control. |
| Dual-Speed Transmission | Low speed (49.8:1) for torque; high speed (25.2:1) for rapid transit. |
| Portal Axles + LCG Chassis | High ground clearance (54mm) with optimized stability. |

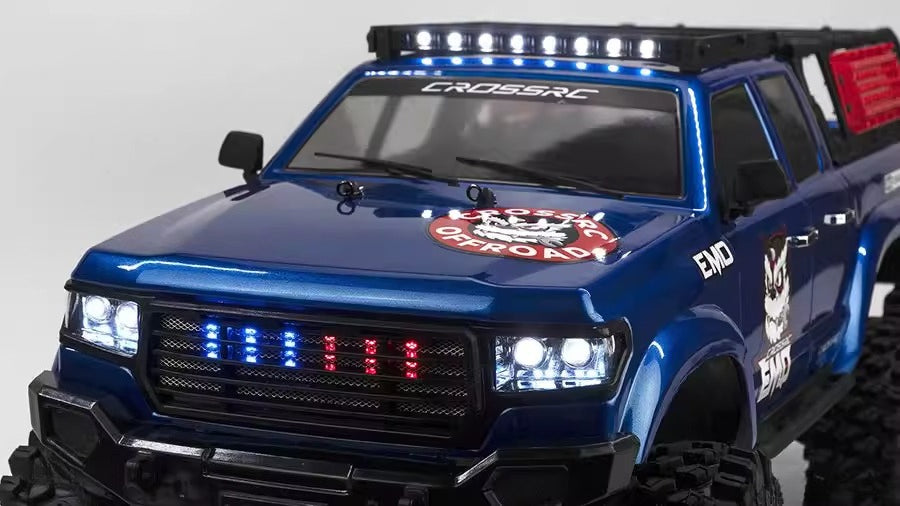

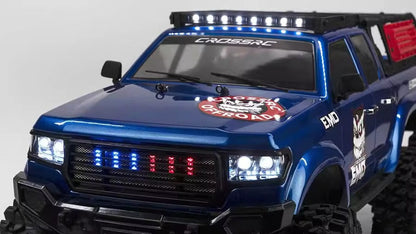

| Premium Tires & Lights | 120mm MUD CLAWLER tires, beadlock wheels, 6-mode LED lighting system. |
Specifications
| Item | Detail |
|---|---|
| Scale | 1:10 |
| Drive | 6x6 Full-Wheel Drive |
| Dimensions | 660 × 251 mm |
| Ground Clearance | 54 mm |
| Weight | Approx. 8 kg |
| Motor | High-Torque Brushed 550 35T |
| ESC | 1060 60A |
| Servos | 15kg Steering / 3kg Shifting |
| Transmission | Remote 2-Speed with Diff Locks |
| Tires | 120 × 45mm MUD CLAWLER (1.9") |
Choose Your Version
RTR (Ready-to-Run)
-
Fully assembled and painted
-
Includes 4-channel radio and LED lights
-
Requires battery and charger

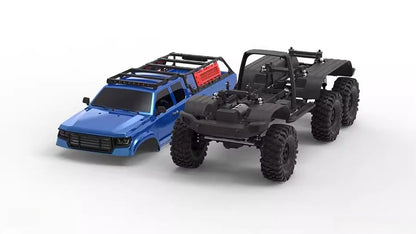

KIT Version
-
For builders – includes chassis, clear body, motor, and LED set
-
Requires full electronics and painting
Pro Tips
-
Use 0.6 Modulus motor gears when building or upgrading.
-
RTR remote is 4-channel. For independent front/rear diff lock control, upgrade to a 5-channel system.
-
Shipping: This 8kg model ships with “Fragile” labels and reinforced packaging for safe delivery.
Engineered to perform. Built to endure. Ready to conquer.
